Planet SG-1000 [98/262] Setting the users to connect with external network only before passing the authentication of policy adopt external radius server built in windows 2003 server authentication

9.2 Setting the users to connect with external network only before

passing the authentication of policy. (Adopt external RADIUS Server

built-in Windows 2003 Server Authentication)

※ Windows 2003 RADIUS Server Setting Way

STEP 1﹒Click [Start] Æ [Control Panel] Æ [Add/Remove Program], Choose

[Add/Remove Windows] and then you can see [Window Component Wizard]

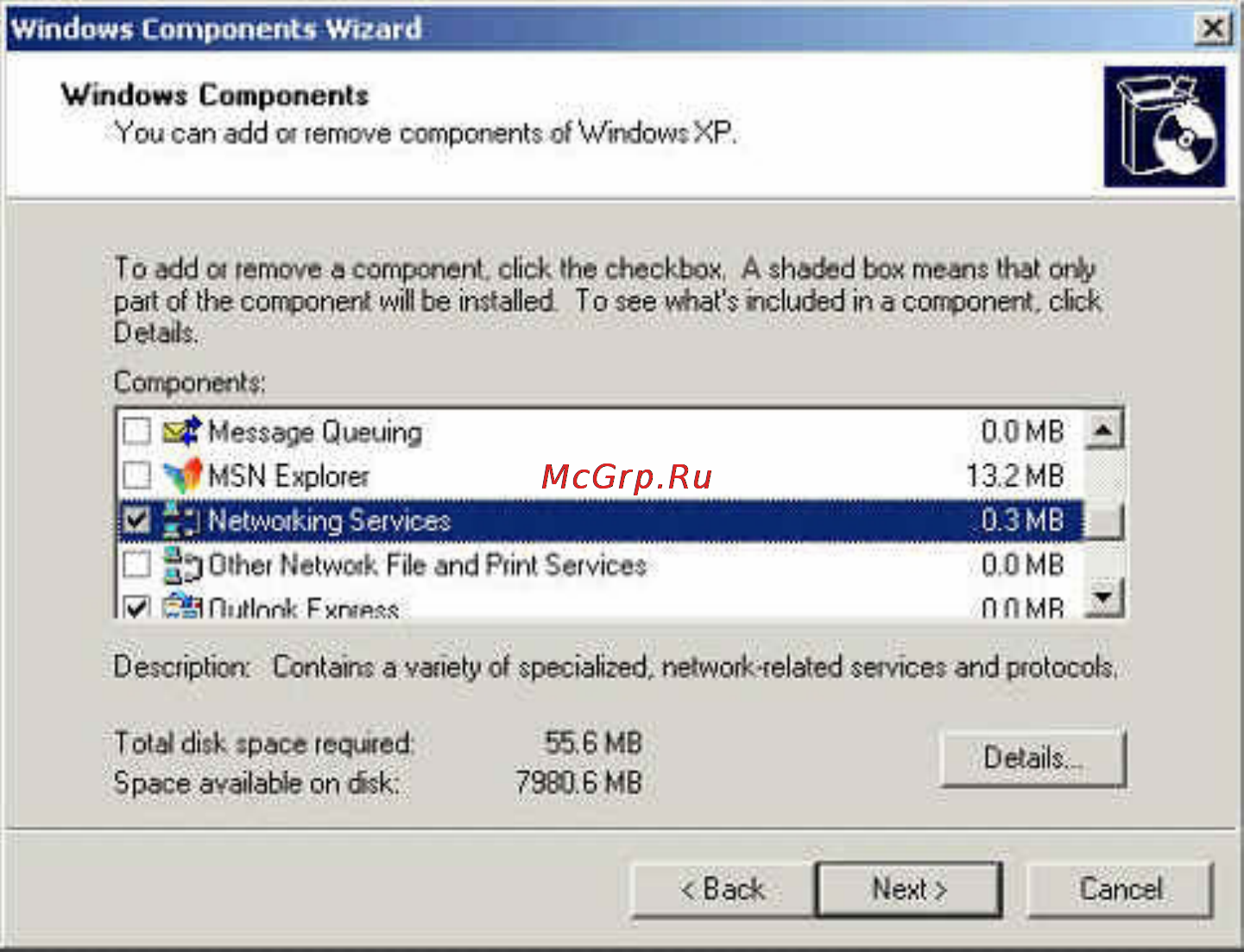

STEP 2﹒Choose Networking Services and click Details

Add Windows Components Web UI

９７
