STEP 4﹒When user_01 is going to access to Internet through browser, the

authentication UI will appear in Browser. After entering the correct user

name and password, click OK to access to Internet.

STEP 5﹒ If the user does not need to access to Internet anymore and is going to

logout, he/she can click LOGOUT Auth-User to logout the system. Or

enter the Logout Authentication Web UI (http:// LAN Interface:

Authentication port number/ logout.html) to logout

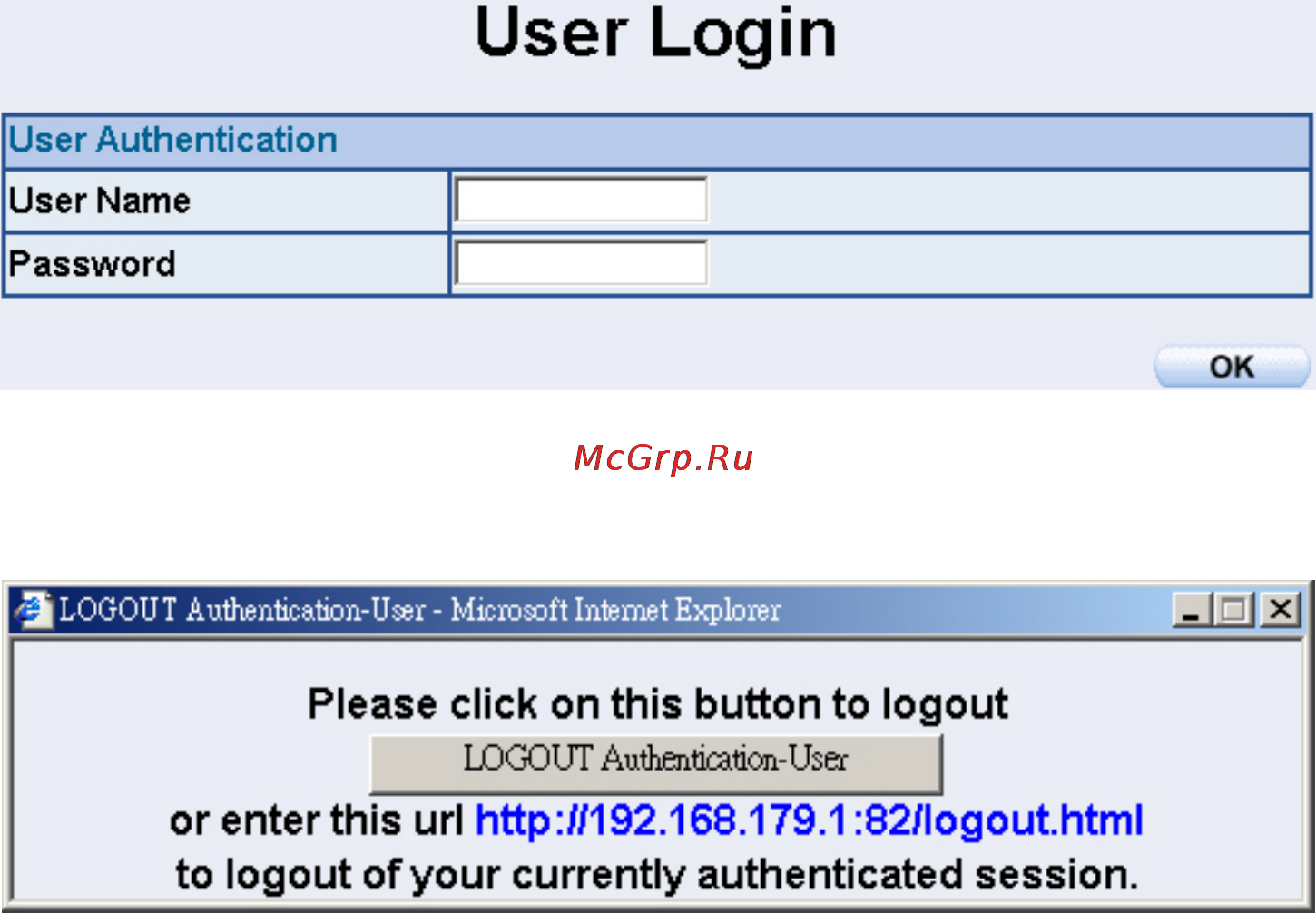

Access to Internet through Authentication Web UI

Logout Auth-User Web UI

９６
