Reboot SG-1000

STEP 1﹒Reboot SG-1000：Click Reboot button next to Reboot SG-1000 Appliance.

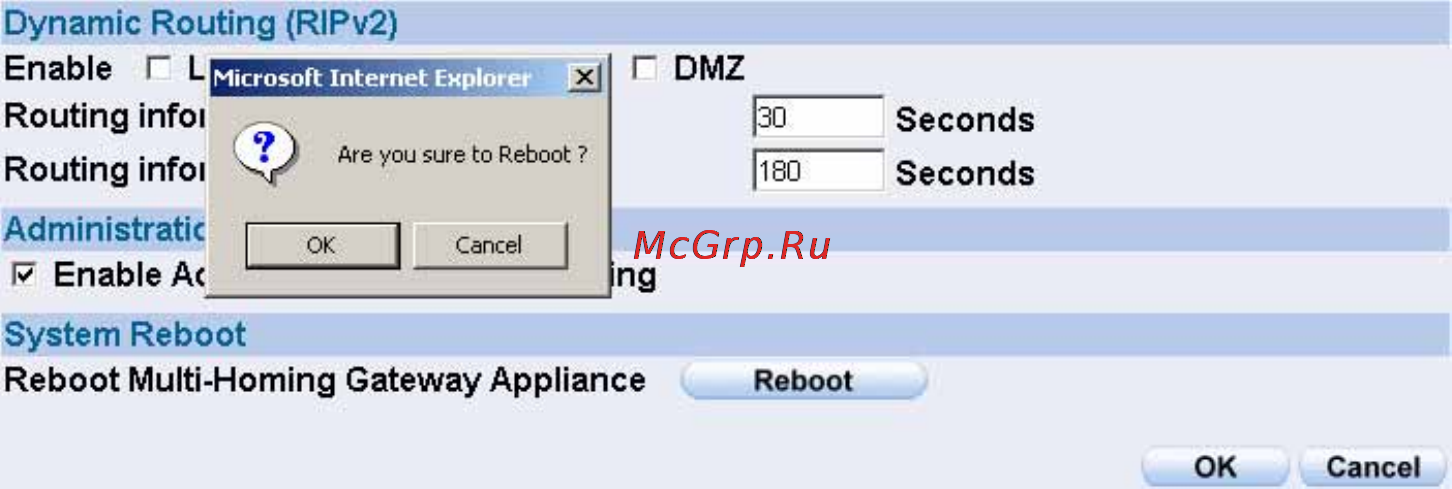

STEP 2﹒A confirmation pop-up page will appear.

STEP 3﹒Follow the confirmation pop-up page; click OK to restart SG-1000.

Reboot SG-1000

２７
