Planet SG-1000 [83/262] Chapter 8 qos

Chapter 8

QoS

By configuring the QoS, you can control the OutBound and InBound

Upstream/Downstream Bandwidth. The administrator can configure the bandwidth

according to the WAN bandwidth.

Downstream Bandwidth：To configure the Guaranteed Bandwidth and Maximum

Bandwidth.

Upstream Bandwidth：To configure the Guaranteed Bandwidth and Maximum

Bandwidth.

QoS Priority：To configure the priority of distributing Upstream/Downstream and

unused bandwidth.

The SG-1000 configures the bandwidth by different QoS, and selects the suitable QoS

through Policy to control and efficiently distribute bandwidth. The SG-1000 also makes

it convenient for the administrator to make the Bandwidth to reach the best utility.

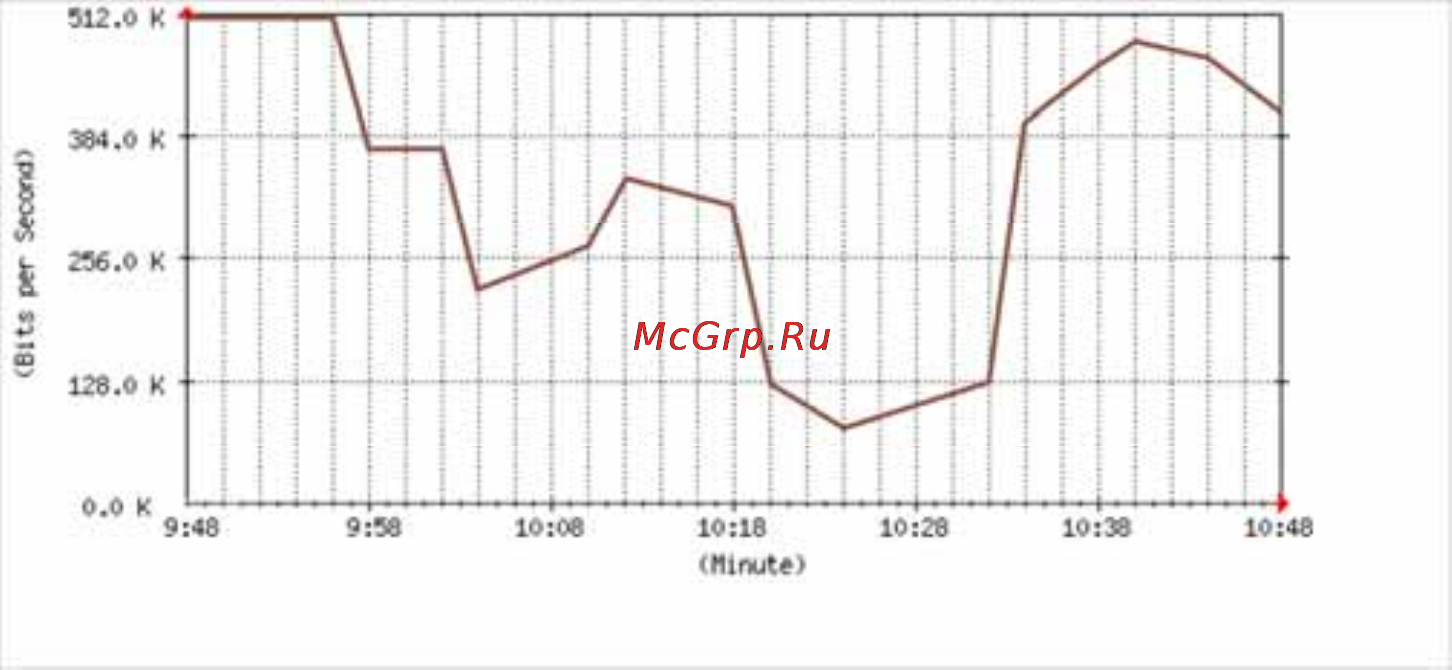

The Flow Before Using QoS

８２
