Planet SG-1000 [24/262] System settings exporting

System Settings- Exporting

STEP 1﹒In System Setting Web UI, click on button next to Export

System Settings to Client.

STEP 2﹒When the File Download pop-up window appears, choose the destination

place where to save the exported file and click on Save. The setting value of

SG-1000 will copy to the appointed site instantly.

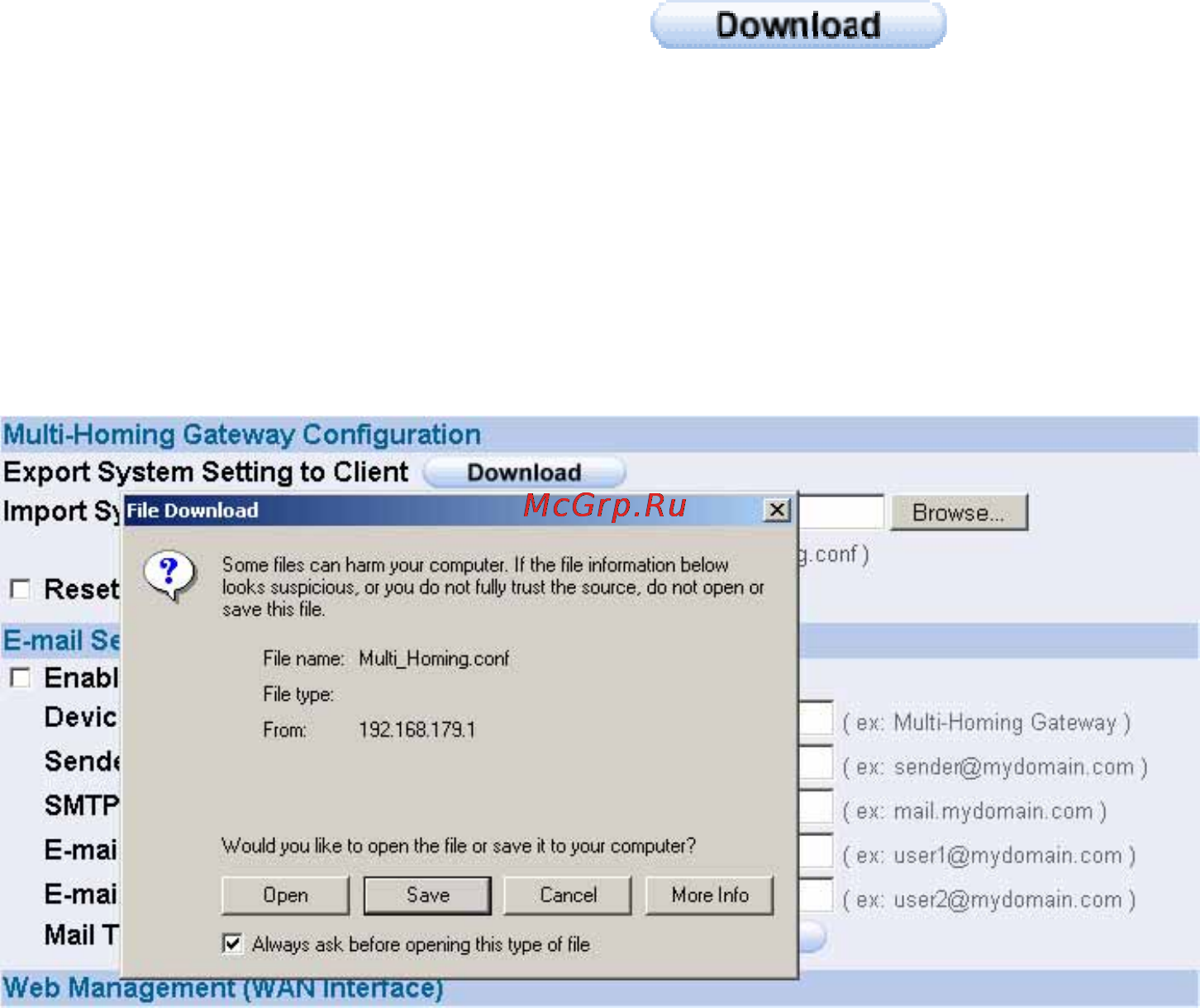

Select the Destination Place to Save the Exported File

２３
