Planet SG-1000 [212/262] Define the required fields of status

Define the required fields of Status:

User Name:

 Display authentication account which is used by client.

Real IP:

 Display the real IP which is used by client.

VPN IP:

 Display the IP which is distributed to client by SG-1000.

Uptime:

 Display the connection time between Server and Client.

Configure:

 Can disconnect the SSL VPN connection.

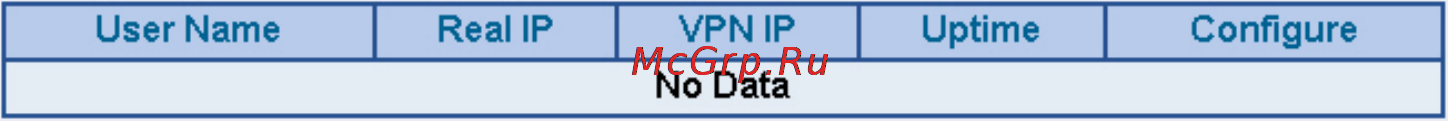

Status Web UI
