17.3 To Detect Event Description of WAN Connection

STEP 1﹒Click Connection in LOG. It can show up WAN Connection records of the

SG-1000.

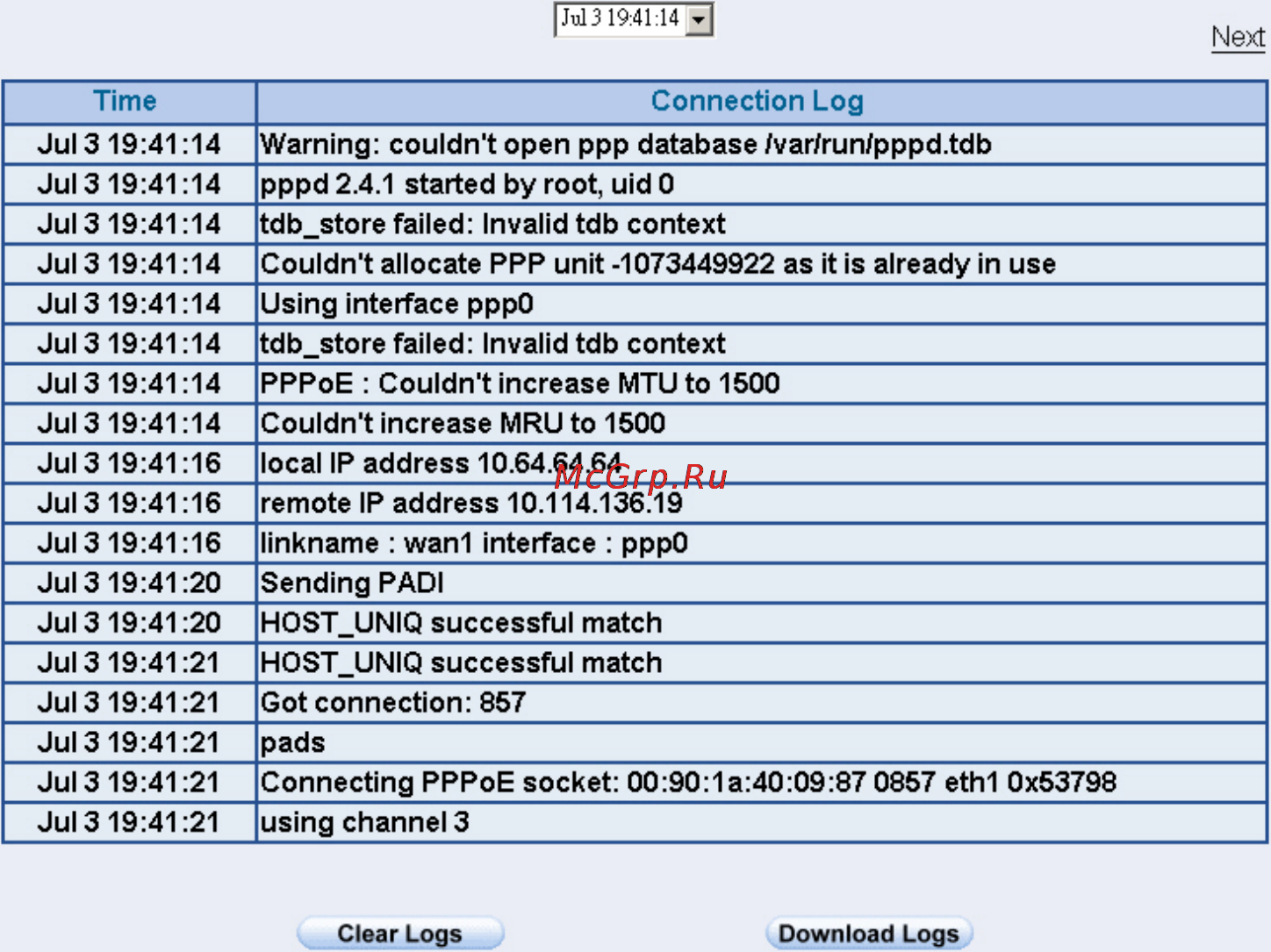

Connection records Web UI
