Planet SG-1000 [141/262] Make a single server that provides several services such as ftp web and mail to provide service by policy

11.1 Make a single server that provides several services such as FTP,

Web, and Mail, to provide service by policy

STEP 1﹒Setting a server that provide several services in LAN, and set up the network

card’s IP as 192.168.1.100. DNS is External DNS Server.

STEP 2﹒Enter the following setting in LAN of Address function:

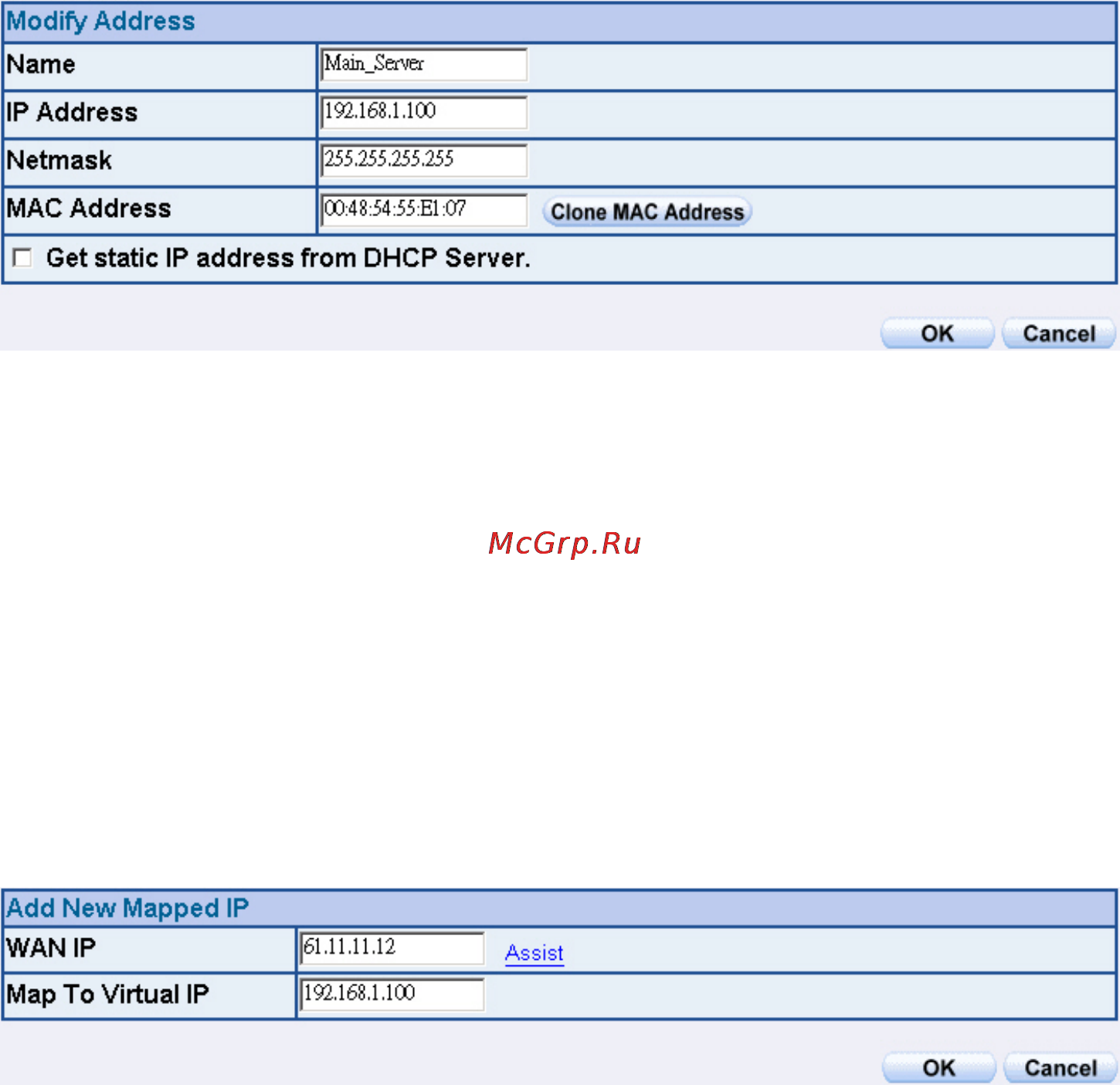

Mapped IP Settings of Server in Address

STEP 3﹒Enter the following data in Mapped IP of Virtual Server function:

 Click New Entry

 WAN IP: Enter 61.11.11.12 (click Assist for assistance)

 Map to Virtual IP: Enter 192.168.1.100

 Click OK

 Complete the setting of adding new mapped IP

Mapped IP Setting Web UI
