Planet SG-1000 [147/262] The external user use voip to connect with voip of lan voip port tcp 1720 tcp 15328 15333 udp 15328 15333

The external user use VoIP to connect with VoIP of LAN (VoIP Port:

TCP 1720, TCP 15328-15333, UDP 15328-15333)

STEP 1﹒Set up VoIP in LAN network, and its IP is 192.168.1.100

STEP 2﹒Enter the following setting in LAN of Address function:

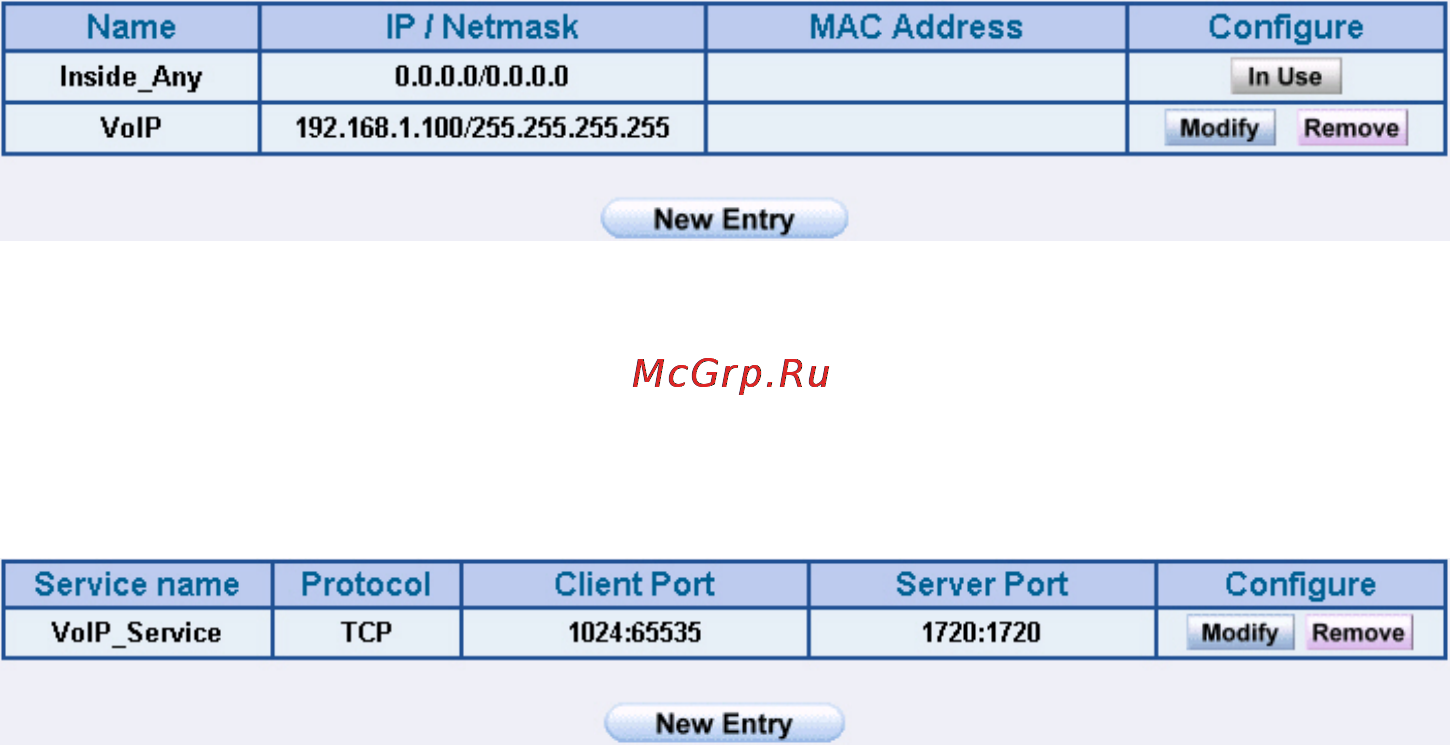

Setting LAN Address Web UI

STEP 3﹒Add new VoIP service group in Custom of Service function.

Add Custom Service

１４６
