Setting DMZ Interface Address (Transparent Mode)

STEP 1﹒Select DMZ Interface

STEP 2﹒Select Transparent Mode in DMZ Interface

 Select DMZ_Transparent in DMZ Interface

STEP 1﹒Select Ping, HTTP, and HTTPS.

STEP 2﹒Click OK

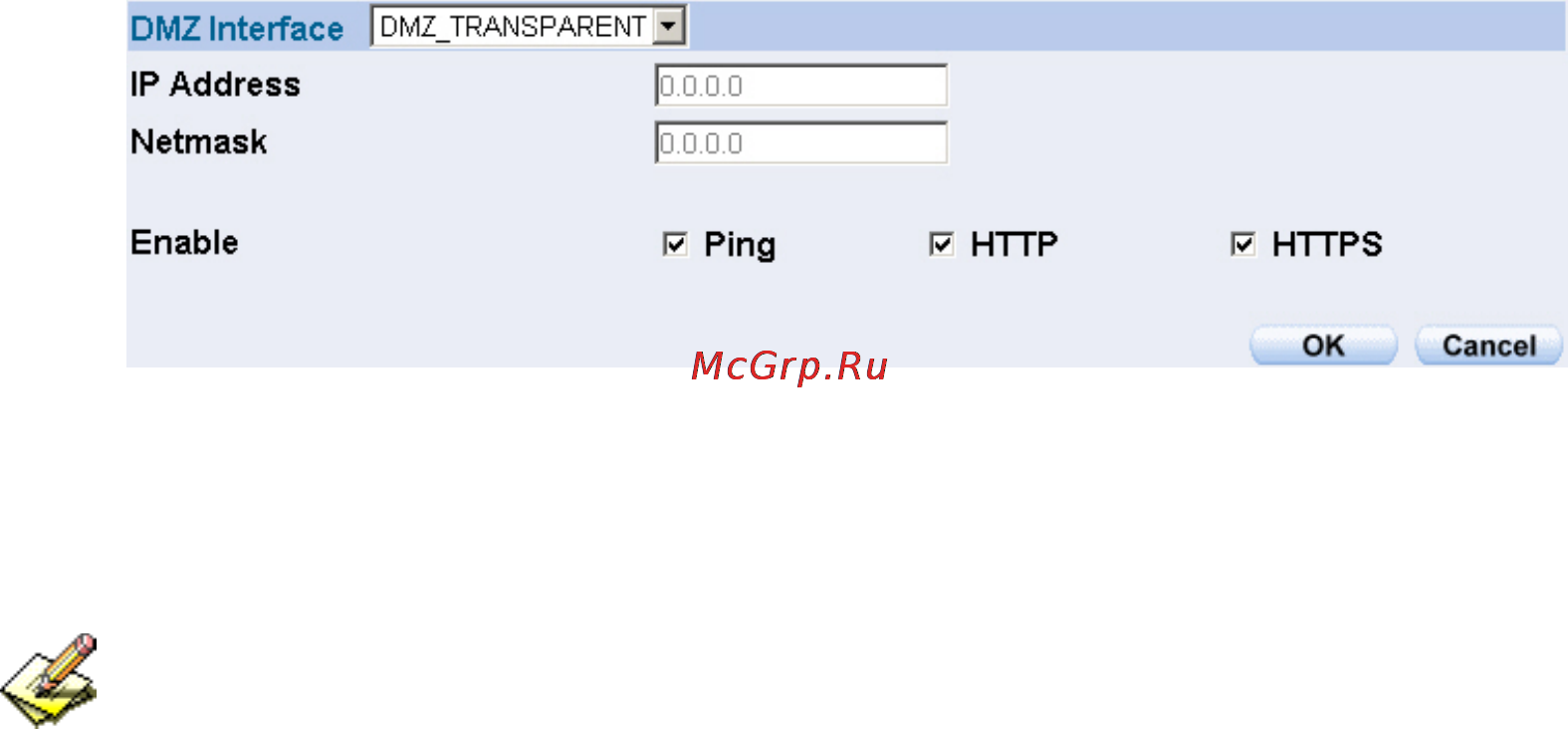

Setting DMZ Interface Address (Transparent Mode) Web UI

In WAN, the connecting way must be Static IP Address and can choose Transparent

Mode in DMZ.
