Planet SG-1000 [151/262] Make several servers that provide several same services to provide service through policy by virtual server take http pop3 smtp and dns group for example

Make several servers that provide several same services, to provide

service through policy by Virtual Server. (Take HTTP, POP3, SMTP,

and DNS Group for example)

STEP 1﹒Setting several servers that provide several services in LAN network. Its

network card’s IP is 192.168.1.101, 192.168.1.102, 192.168.1.103,

192.168.1.104 and the DNS setting is External DNS server.

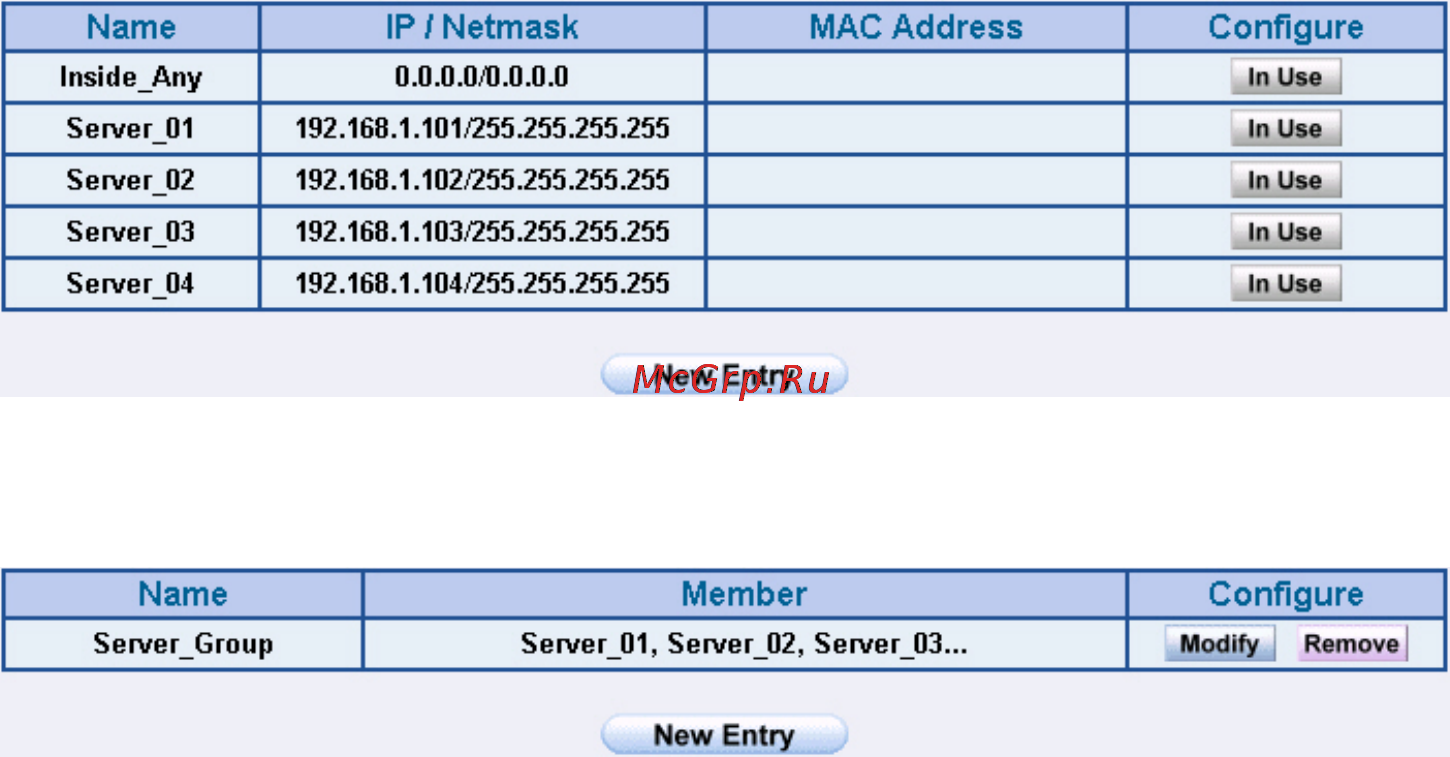

STEP 2﹒Enter the following in LAN and LAN Group of Address function:

Mapped IP Setting of Virtual Server in Address

Group Setting of Virtual Server in Address
