Planet SG-1000 [133/262] Restrict the internal users to send message files video and audio by instant messaging

10.4 Restrict the Internal Users to send message, files, video and audio

by Instant Messaging

STEP 1﹒Enter as following in IM Blocking of Content Blocking function:

 Select MSN Messenger, Yahoo Messenger, ICQ Messenger, QQ

Messenger and Skype.



Click OK

 Complete the setting of IM Blocking.

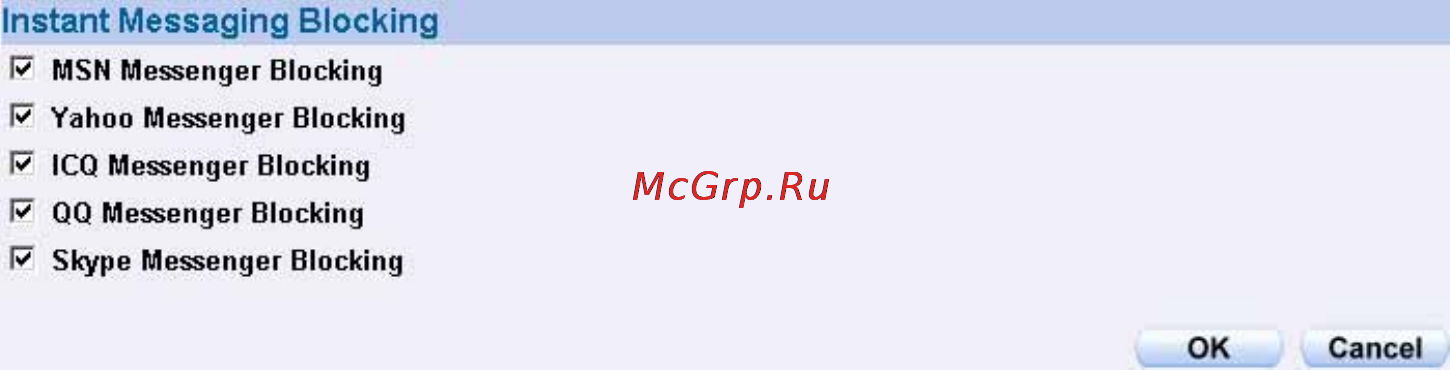

IM Blocking Web UI

１３２
