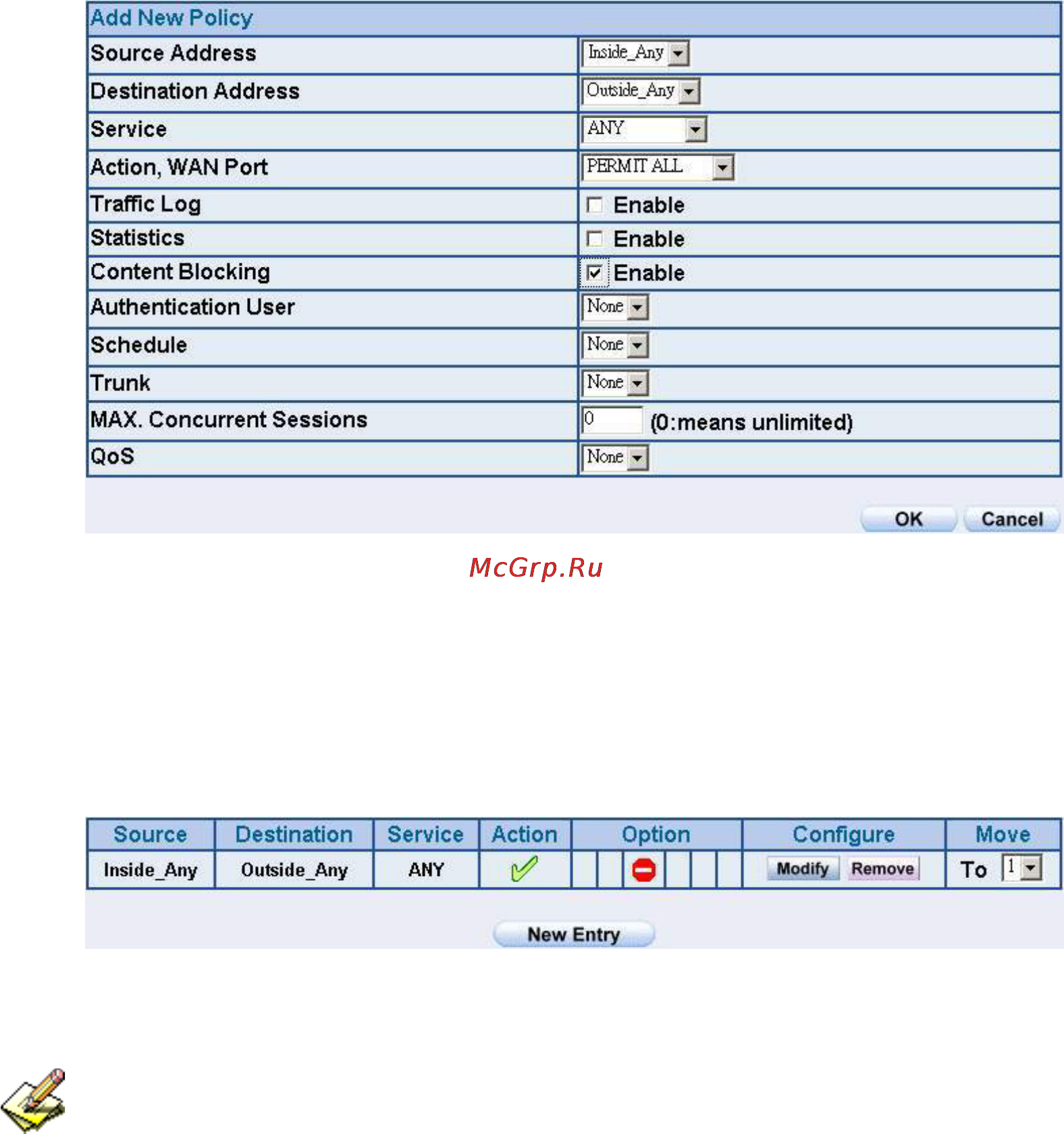

STEP 2﹒Add a new Outgoing Policy and use in Content Blocking function:

Add New Policy of P2P Blocking

STEP 3﹒Complete the policy of restricting the internal users to access to the file on

Internet by P2P in Outgoing Policy:

Complete P2P Blocking Policy Setting

P2P Transfer will occupy large bandwidth so that it may influence other users. And P2P

Transfer can change the service port free so it is invalid to restrict P2P Transfer by Service.

Therefore, the system manager must use P2P Blocking in Content Blocking to restrict users to

use P2P Transfer efficiently.

１３１
