Planet SG-1000 [194/262] Set up the policy that can monitor the internal users take logging statistics and alarm threshold for example

13.1 Set up the policy that can monitor the internal users. (Take

Logging, Statistics, and Alarm Threshold for example)

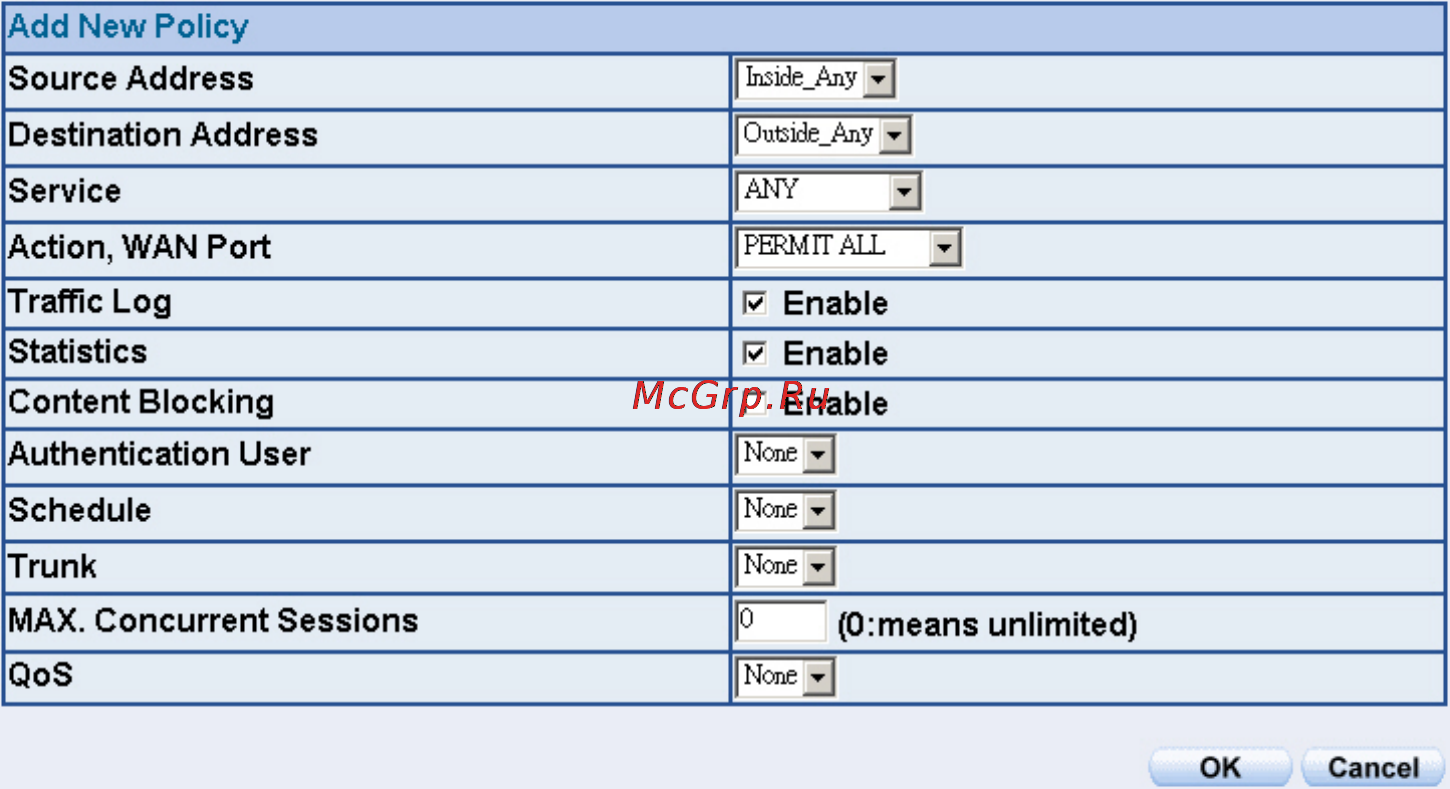

STEP 1﹒Enter the following setting in Outgoing Policy:

 Click New Entry

 Select Logging

 Select Statistics

 Click OK

Setting the different Policies

１９３
