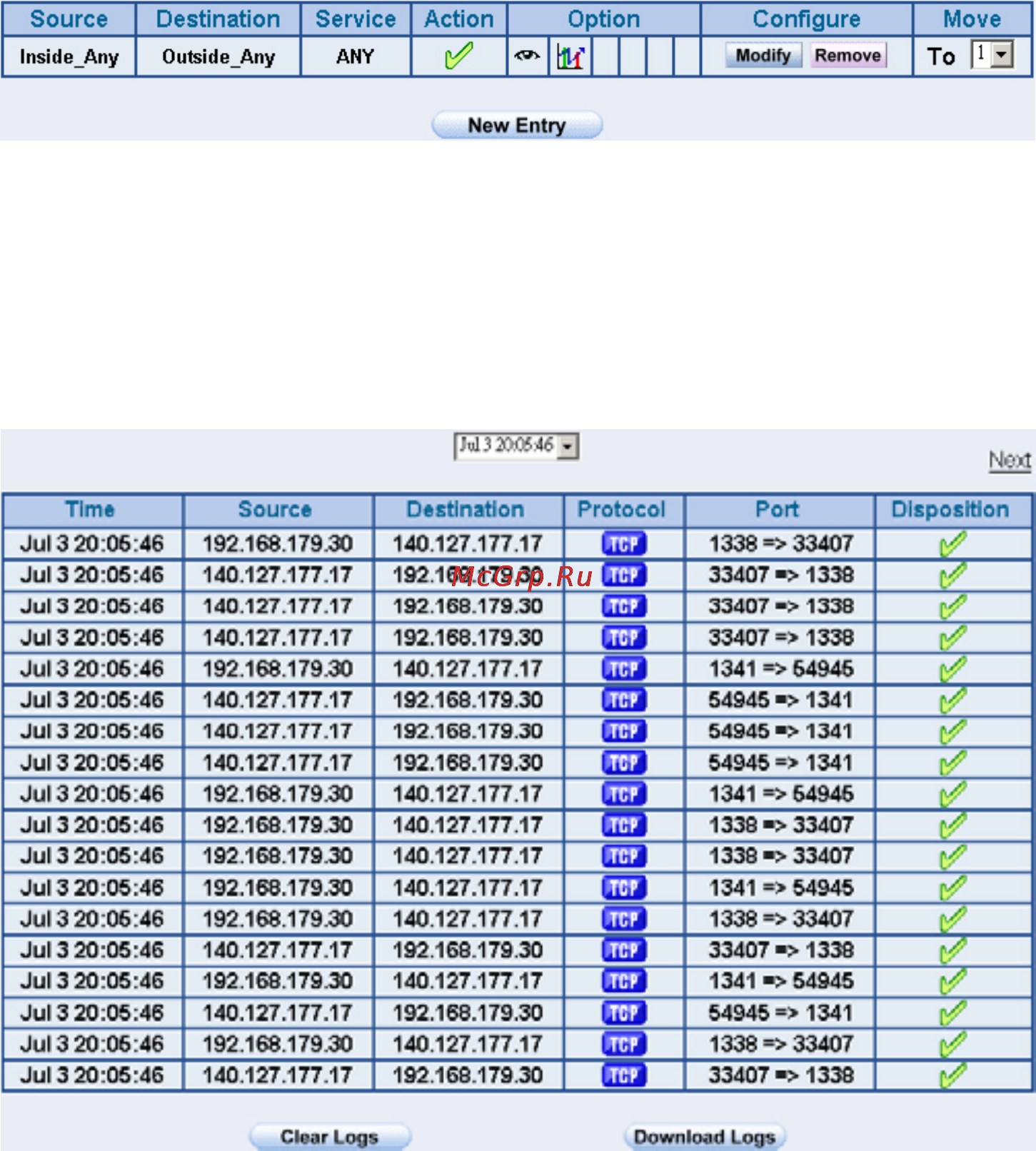

STEP 2﹒Complete the setting of Logging and Statistics in Outgoing Policy:

Complete Policy Setting

STEP 3﹒Obtain the information in Traffic of Log function if you want to monitor all

the packets of the SG-1000.

Traffic Log Monitor Web UI

１９４
