Planet SG-1000 [228/262] Sg 1000 alarm and to prevent the computer which being attacked to send ddos packets to lan network

15.1 SG-1000 Alarm and to prevent the computer which being

attacked to send DDoS packets to LAN network

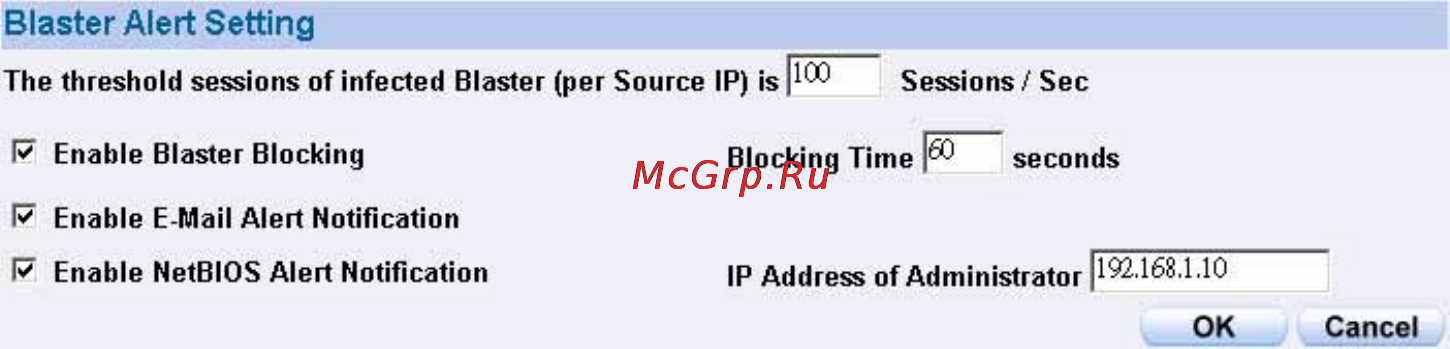

STEP 1﹒Select Internal Alert in Alert Setting and enter the following settings:

 Enter The threshold sessions of infected Blaster (per Source IP) (the

default value is 30 Sessions/Sec)

 Select Enable Blaster Blocking and enter the Blocking Time (the

default time is 60 seconds)

 Select Enable E-Mail Alert Notification

 Select Enable NetBIOS Alert Notification

 IP Address of Administrator: Enter 192.168.1.10

 Click OK

 Internal Alert Setting is completed.

Internal Alert Settings

２２７
