Planet SG-1000 [262/262] Dhcp clients

19.4 DHCP Clients

STEP 1﹒In DHCP Clients of Status function, it will display the table of DHCP

Clients that are connected to the SG-1000:

 IP Address: The dynamic IP that provided by DHCP Server

 MAC Address: The IP that corresponds to the dynamic IP

２６１

 Leased Time: The valid time of the dynamic IP (Start/End)

(Year/Month/Day/Hour/Minute/Second)

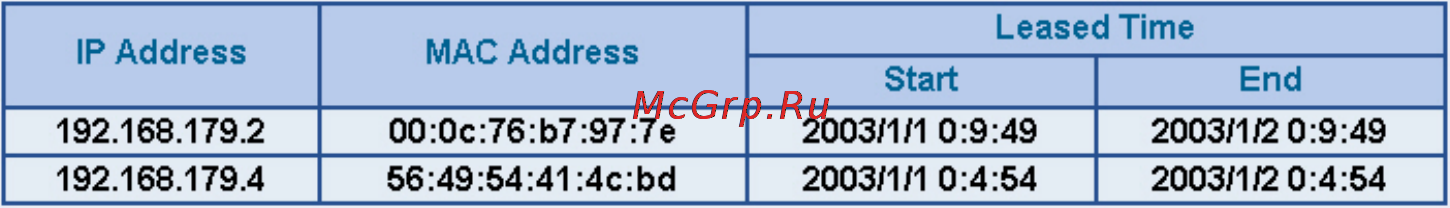

DHCP Clients Web UI
