Planet SG-1000 [94/262] Setting a specific user to connect with external network only before passing the authentication of policy adopt the built in auth user and group function

9.1 Setting a specific user to connect with external network only before

passing the authentication of policy. (Adopt the built-in Auth User and

Group Function)

STEP 1﹒Enter the following setting in Auth User of Authentication:

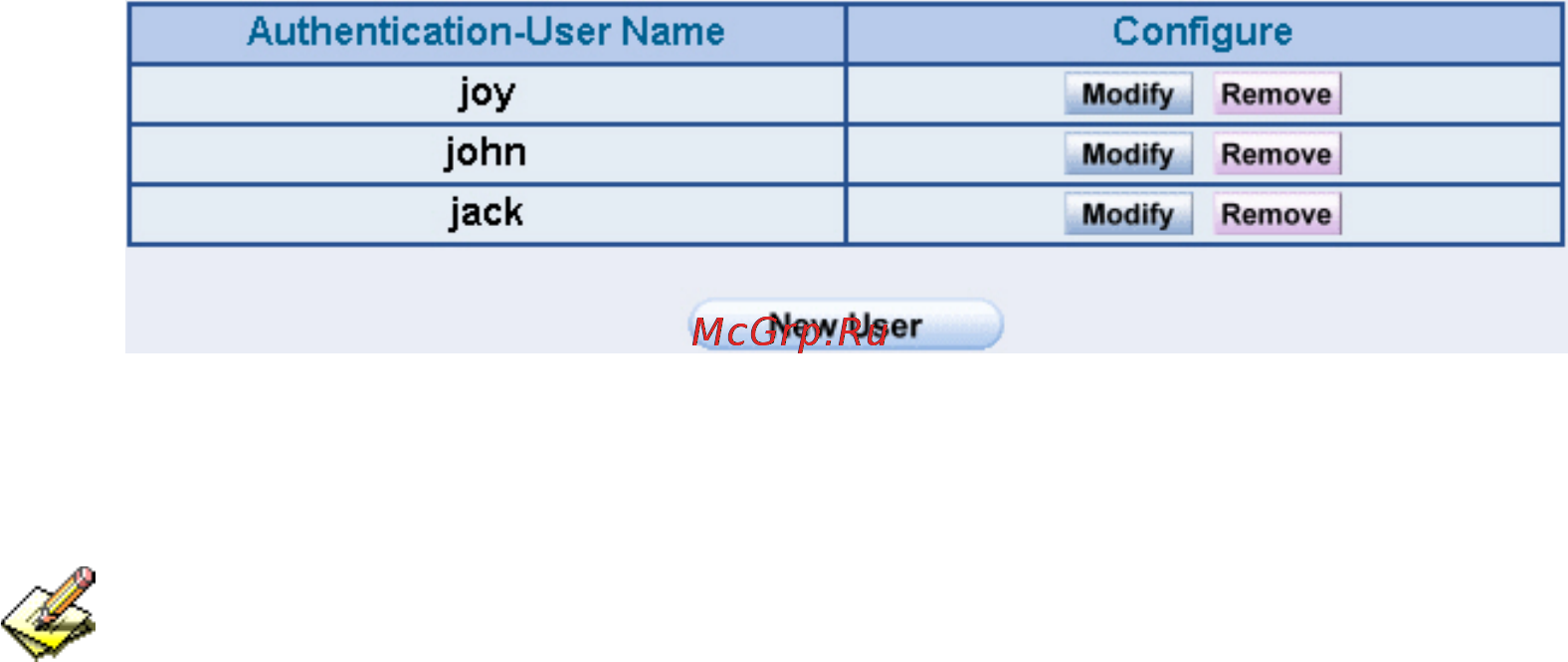

Auth User Setting Web UI

To use Authentication, the DNS Server of the user’s network card must be the same as the

LAN Interface Address of SG-1000.

９３
