Planet SG-1000 [213/262] Setting web vpn ssl vpn connection between external client and sg 1000

14.1 Setting Web VPN / SSL VPN Connection between External Client

and SG-1000

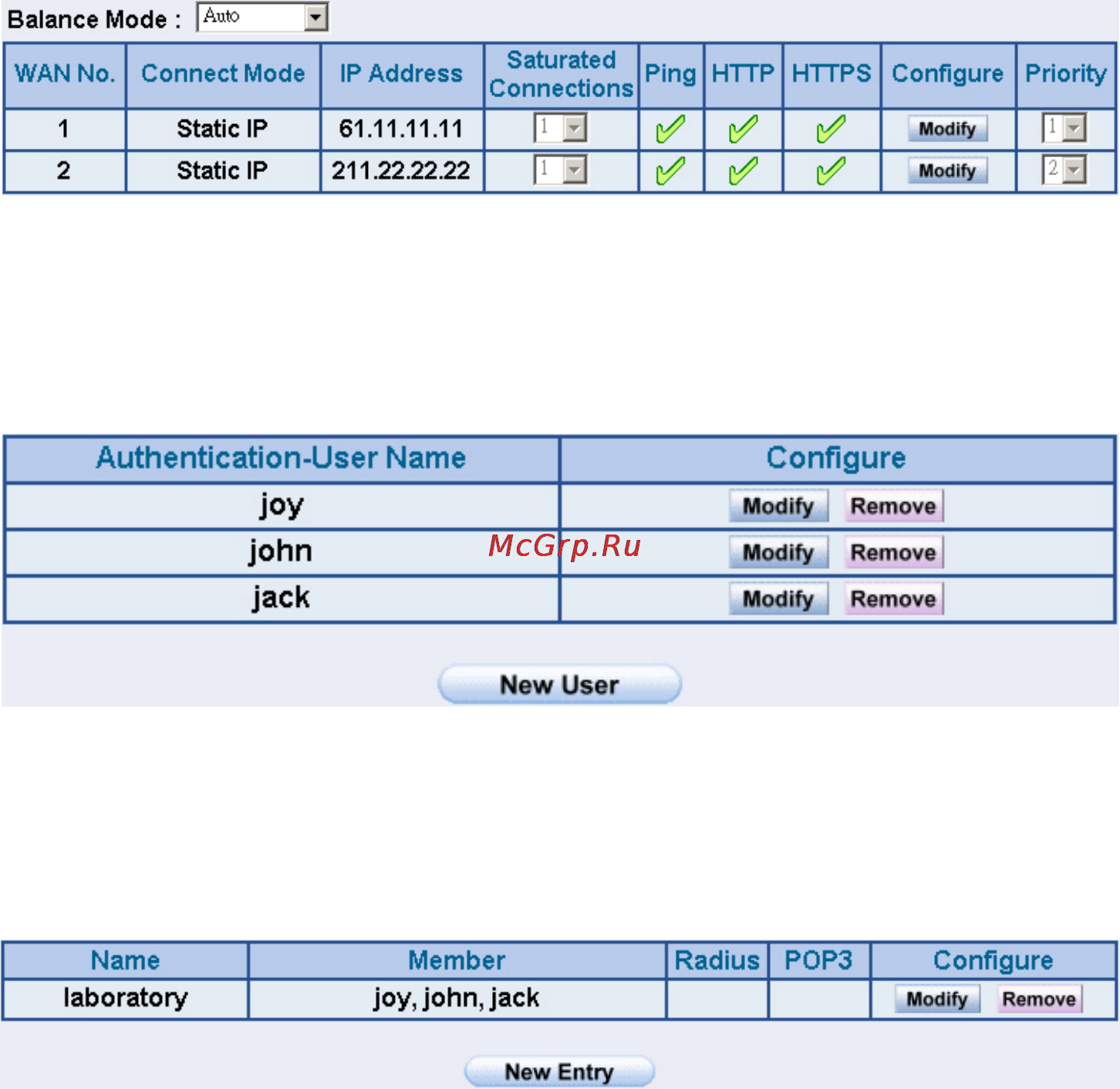

STEP 1. Enable HTTPS in WAN of Interface function:

WAN Interface Setting

STEP 2. Enter the following setting in Auth User of Authentication:

Auth User Setting

STEP 3. Enter the following setting in Auth Group of Authentication:

Auth Group Setting
