To configure the valid time periods for LAN users to access to Internet

in a day

STEP 1﹒Enter the following in Schedule:

 Click New Entry

 Enter Schedule Name

 Set up the working time of Schedule for each day

 Click OK

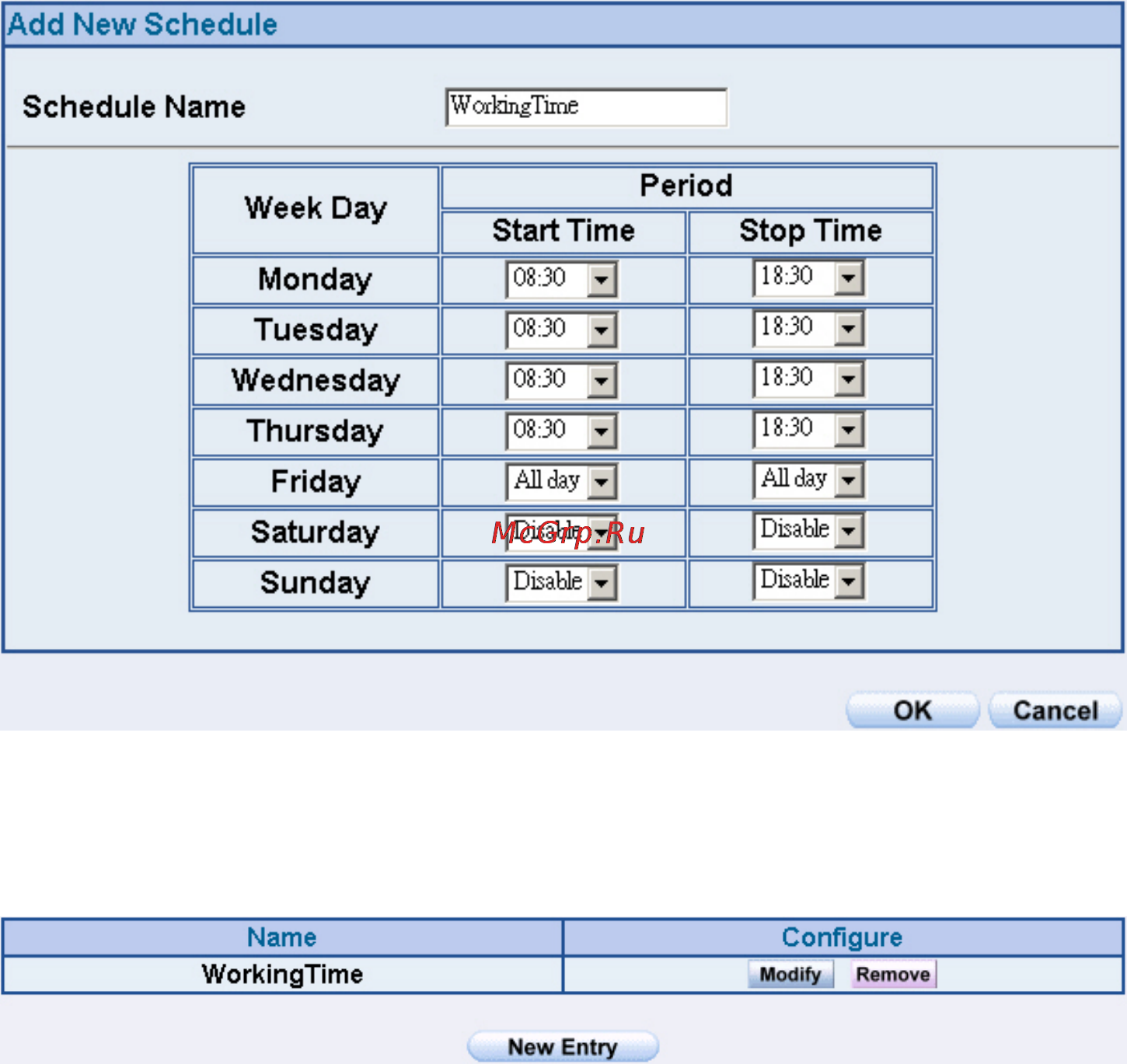

Setting Schedule Web UI

Complete the Setting of Schedule
