Planet SG-1000 [243/262] To record the detailed management events such as interface and event description of sg 1000 of the administrator

17.2 To record the detailed management events (such as Interface and

event description of SG-1000) of the Administrator

STEP 1﹒Click Event log of LOG. The management event records of the

administrator will show up.

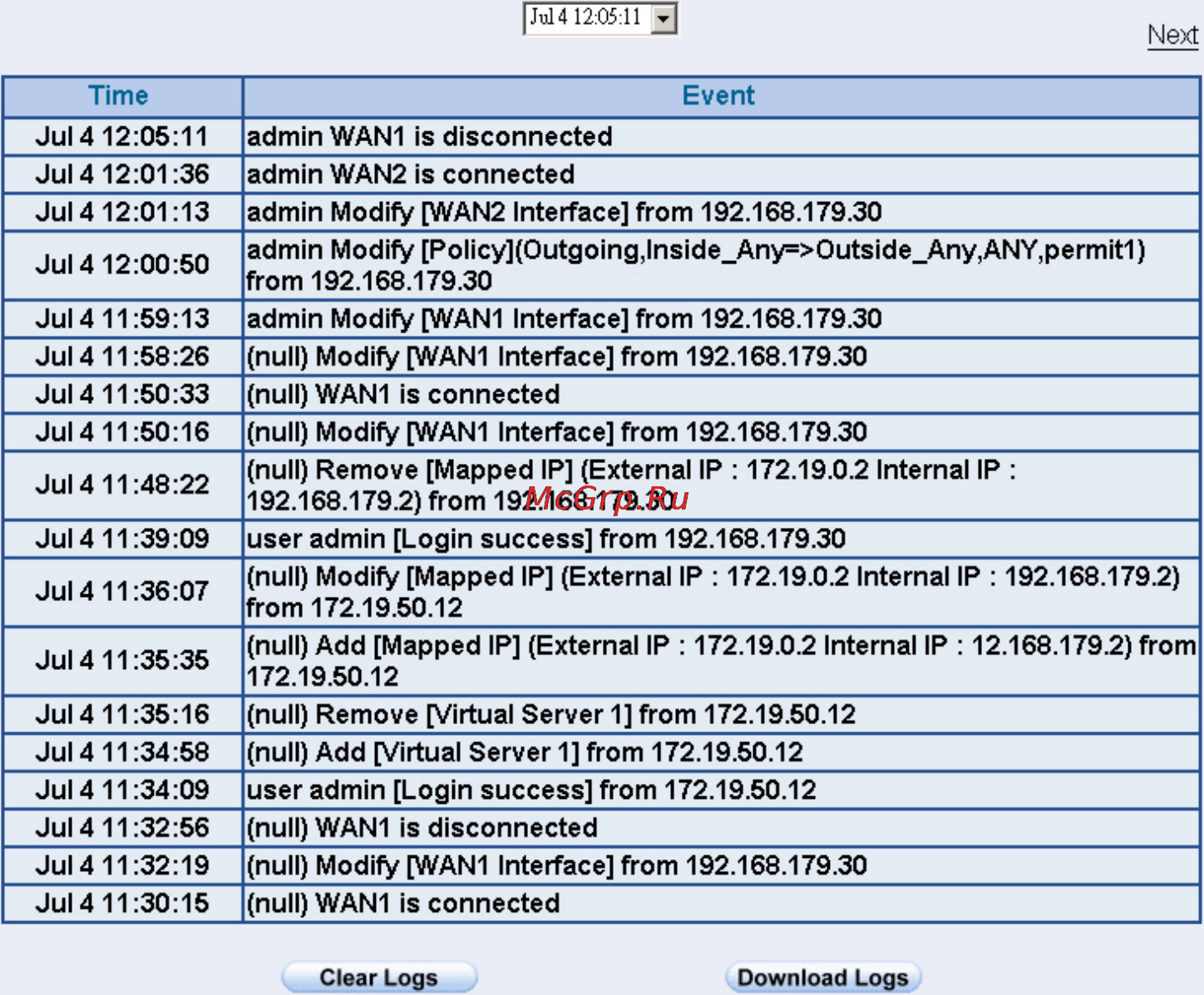

Event Log Web UI

２４２
