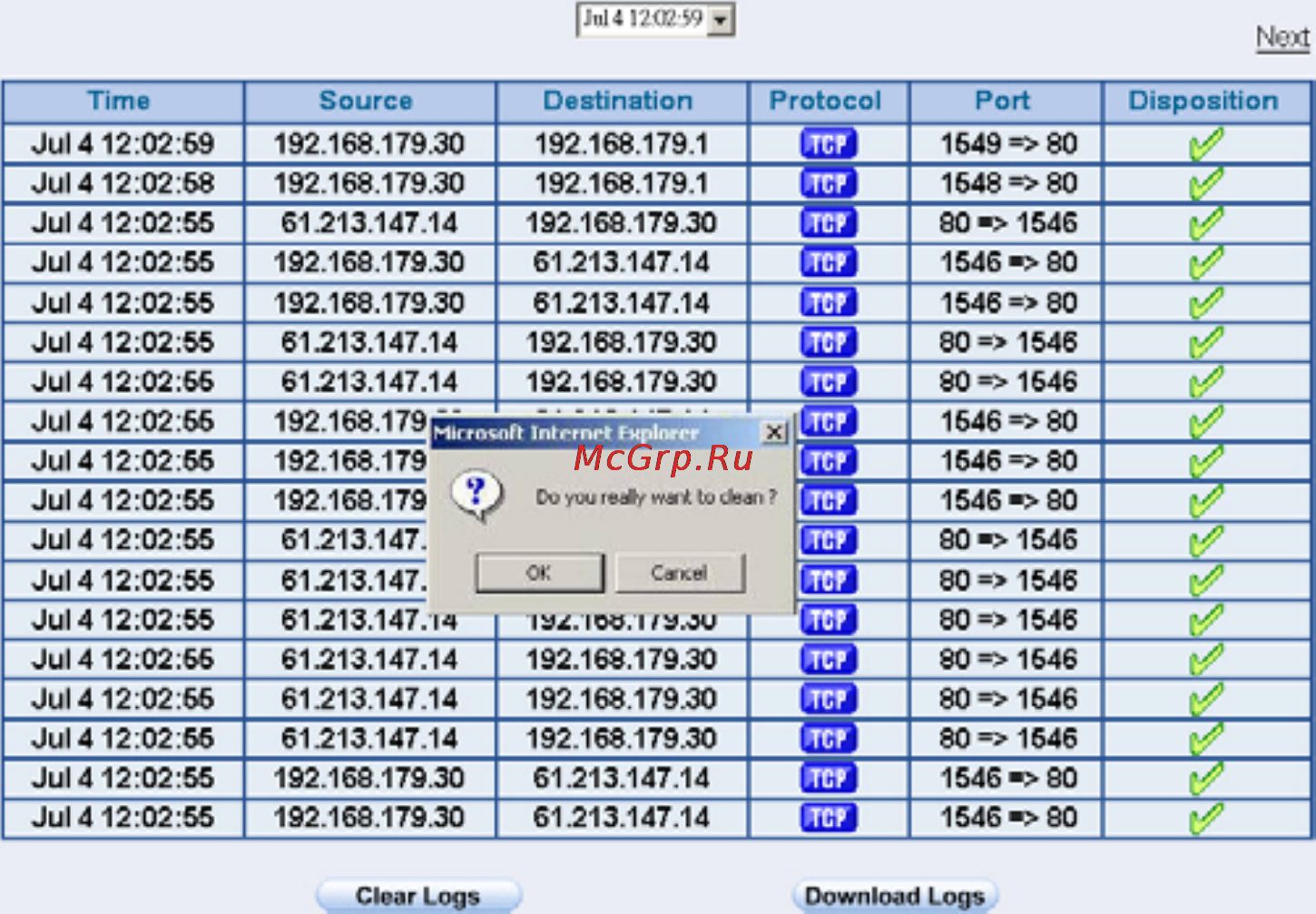

STEP 5﹒Click Clear Logs and click OK on the confirm Web UI; the records will be

deleted from the SG-1000 instantly.

Clearing Traffic Log Records Web UI

２４１
