Planet SG-1000 [239/262] To detect the information and protocol port that users use to access to internet or intranet by sg 1000

17.1 To detect the information and Protocol port that users use to

access to Internet or Intranet by SG-1000

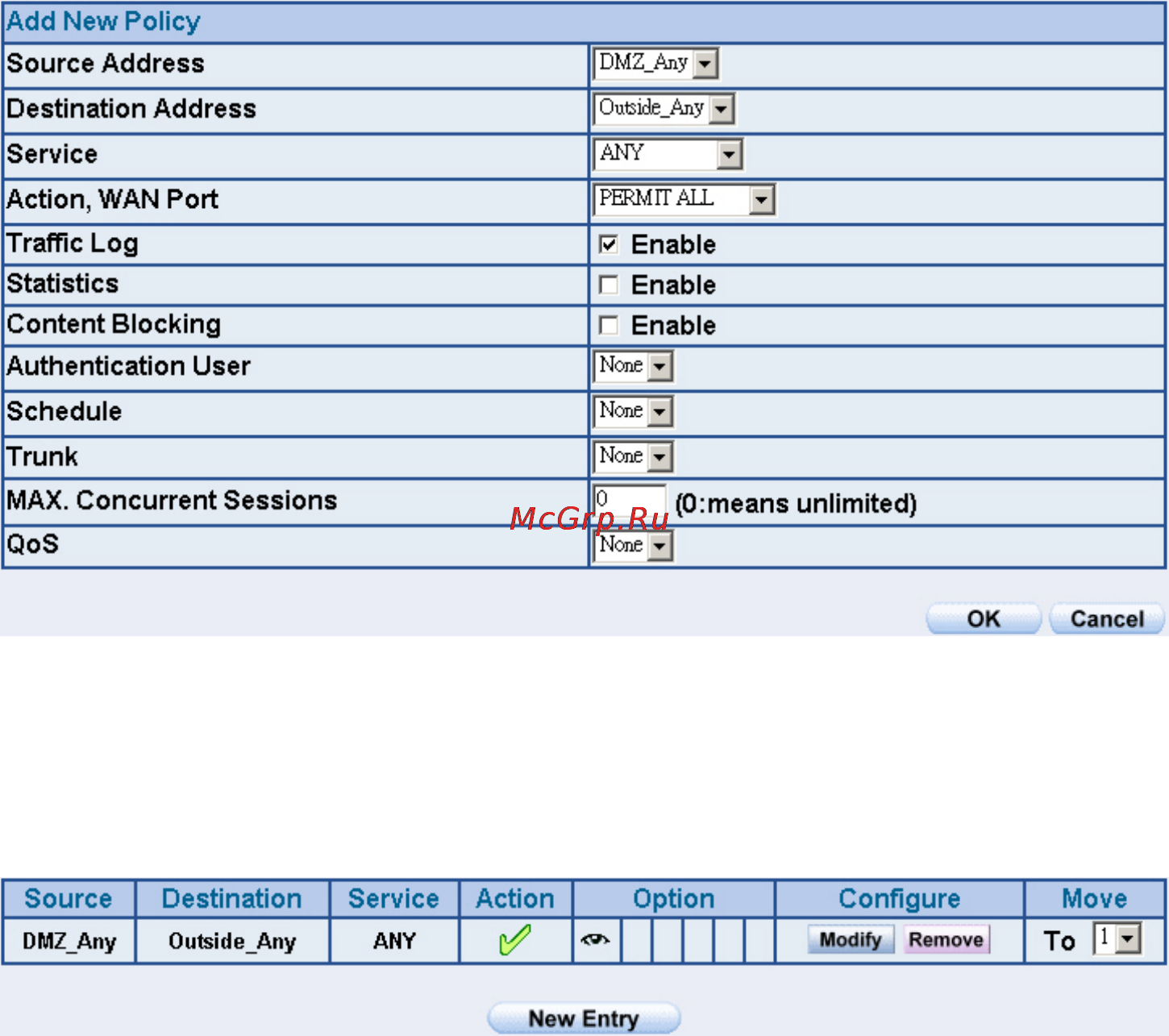

STEP 1﹒Add new policy in DMZ to WAN of Policy and select Enable Logging:

Logging Policy Setting

STEP 2﹒Complete the Logging Setting in DMZ to WAN Policy:

Complete the Logging Setting of DMZ to WAN
