Planet SG-1000 [16/262] Logout

2.3 Logout

STEP 1﹒Click Logout which locate in Browser’s above right to protect the system

while Administrator are away.

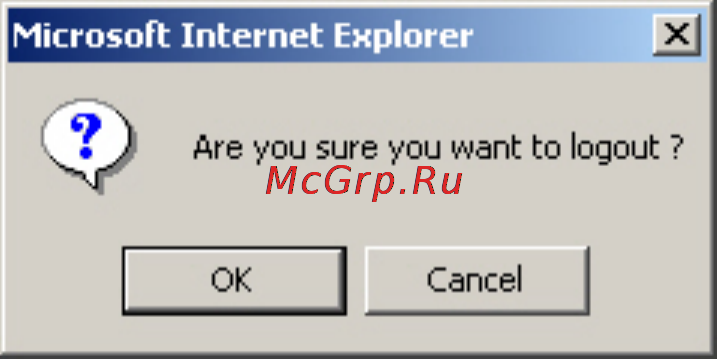

Confirm Logout Web UI

１５
