Planet SG-1000 [13/262] Adding a new sub administrator

2.1 Adding a new Sub Administrator

STEP 1﹒In the Admin Web UI, click the New Sub Admin button to create a new

Sub Administrator.

STEP 2﹒In the Add New Sub Administrator Web UI and enter the following setting:

 Sub Admin Name: sub_admin

 Password: 12345

１２

dd the user or click Cancel to cancel it.

 Confirm Password: 12345

STEP 3﹒Click OK to a

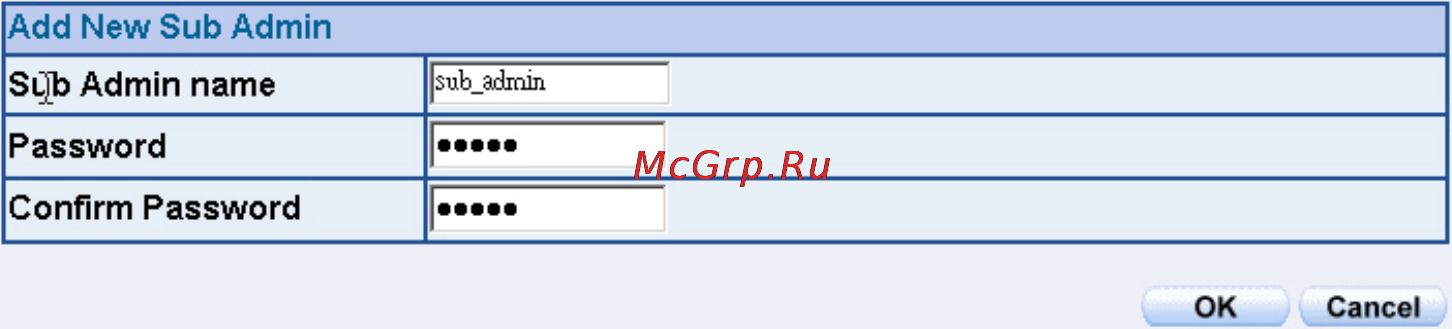

Add New Sub Admin
