Planet SG-1000 [77/262] Setting service group and restrict the specific users only can access to service resource that provided by this group through policy group http pop3 smtp dns

6.2 Setting service group and restrict the specific users only can access

to service resource that provided by this group through policy (Group:

HTTP, POP3, SMTP, DNS)

STEP 1﹒Enter the following setting in Group of Service:

 Click New Entry

 Name: Enter Main_Service

 Select HTTP, POP3, SMTP, DNS in Available Service and click Add

 Click OK

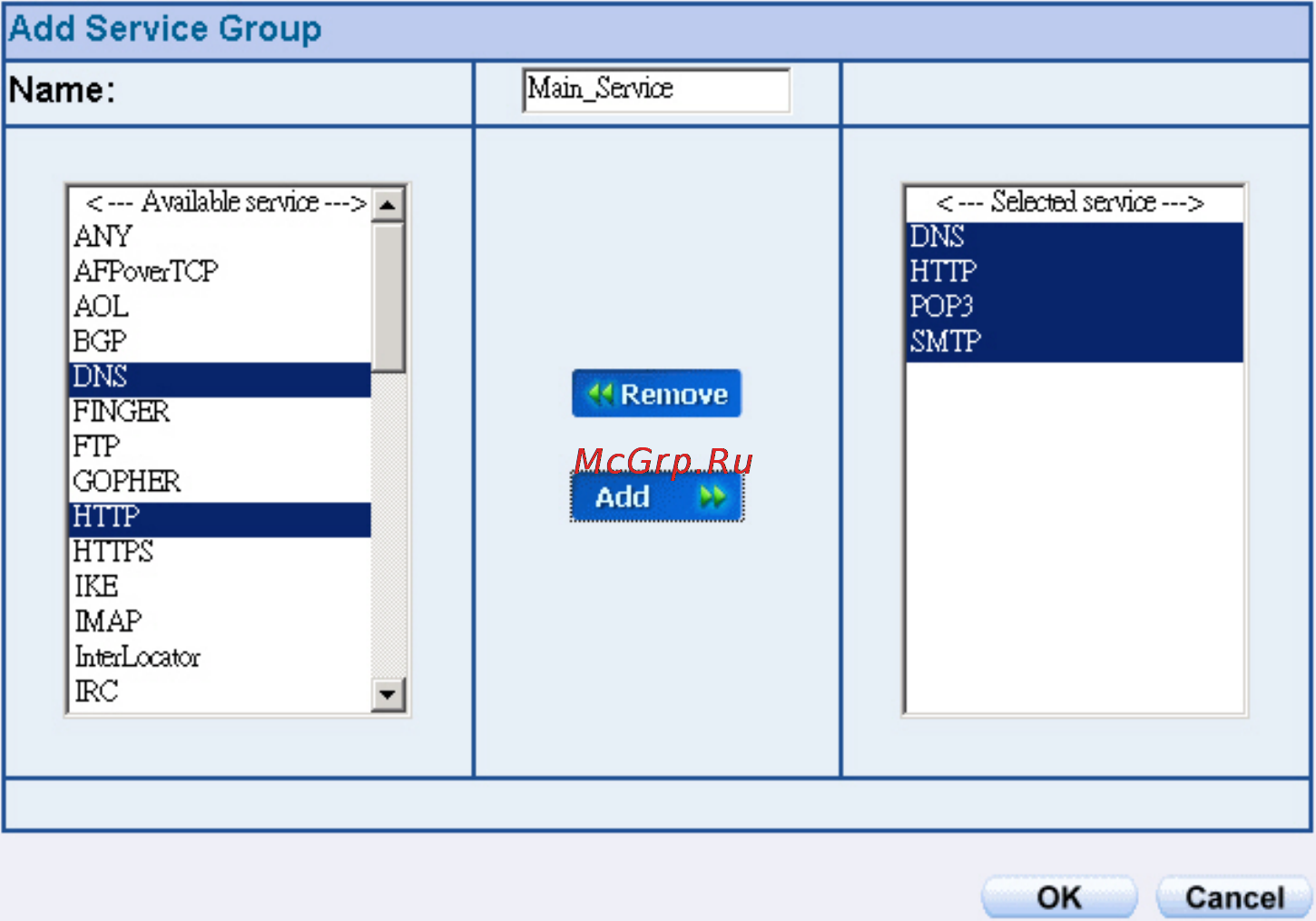

Add Service Group

７６
