12.1 Setting IPSec VPN connection between two SG-1000

Preparation

Company A WAN IP: 61.11.11.11

LAN IP: 192.168.10.X

Company B WAN IP: 211.22.22.22

LAN IP: 192.168.20.X

This example takes two SG-1000 as work platform. Suppose Company A

192.168.10.100 create a VPN connection with Company B 192.168.20.100 for

downloading the sharing file.

The Default Gateway of Company A is the LAN IP of the SG-1000 192.168.10.1.

Follow the steps below:

STEP 1﹒Enter the default IP of Gateway of Company A’s SG-1000, 192.168.10.1 and

select IPSec Autokey in VPN. Click New Entry.

IPSec Autokey Web UI

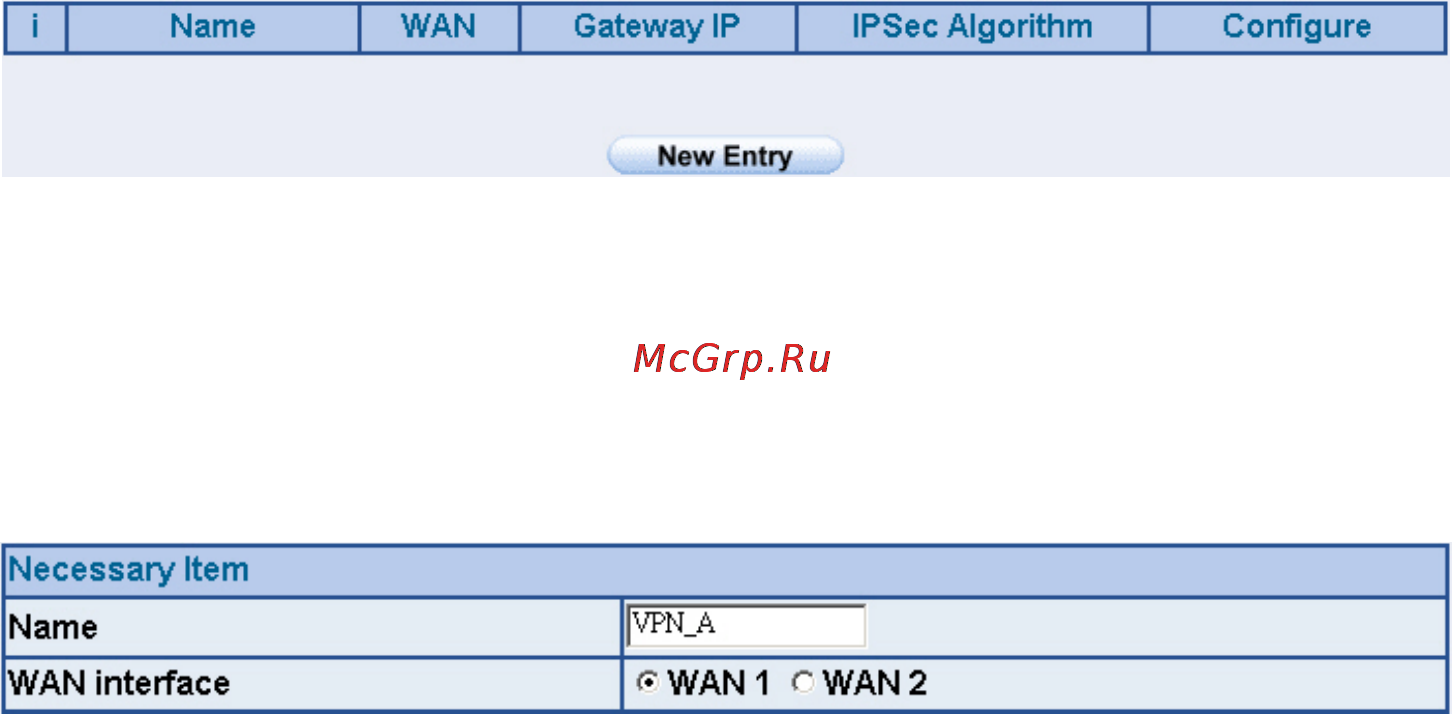

STEP 2﹒In the list of IPSec Autokey, fill in Name with VPN_A and select WAN1 in

WAN interface.

IPSec Autokey Name Setting
