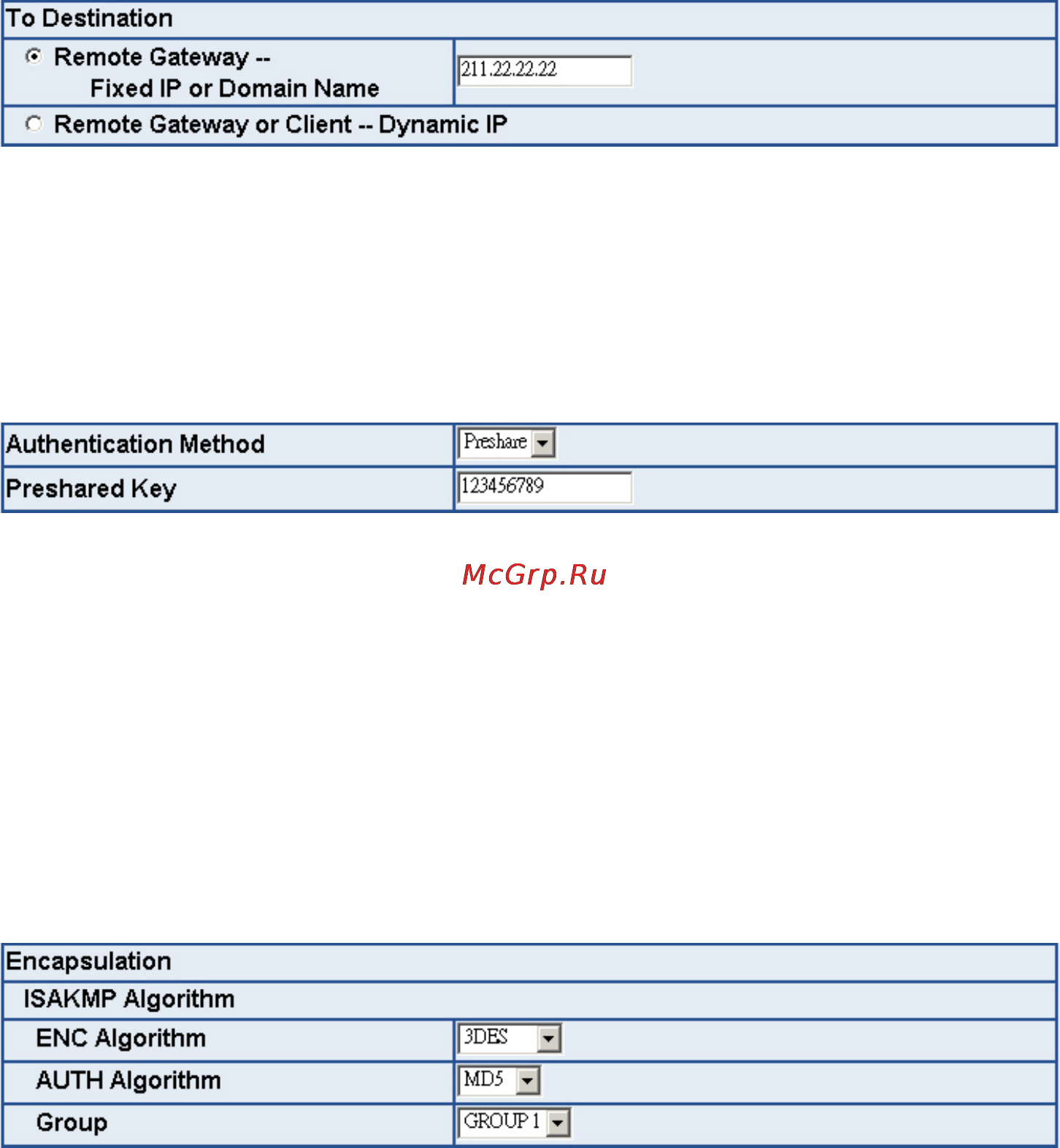

st STEP 3﹒ Select Remote Gateway-Fixed IP or Domain Name In To Destination li

and enter the IP Address.

IPSec To Destination Setting

STEP 4﹒ Select Preshare in Authentication Method and enter the Preshared Key

(max: 100 bits)

IPSec Authentication Method Setting

STEP 5﹒Select ISAKMP Algorithm in Encapsulation list. Choose the Algorithm

when setup connection. Please select ENC Algorithm (3DES/DES/AES), AUTH

Algorithm (MD5/SHA1), and Group (GROUP1, 2,5). Both sides have to choose

the same group. Here we select 3DES for ENC Algorithm, MD5 for AUTH

Algorithm, and GROUP1 for group.

IPSec Encapsulation Setting
