Planet SG-1000 [131/262] Restrict the internal users to access to the file on internet by p2p

10.3 Restrict the Internal Users to access to the file on Internet by P2P

STEP 1﹒Select the following data in P2P of Content Blocking function:

 Select eDonkey Blocking

 Select BitTorrent Blocking

 Select WinMX Blocking

 Click OK

 Complete the setting of P2P Blocking

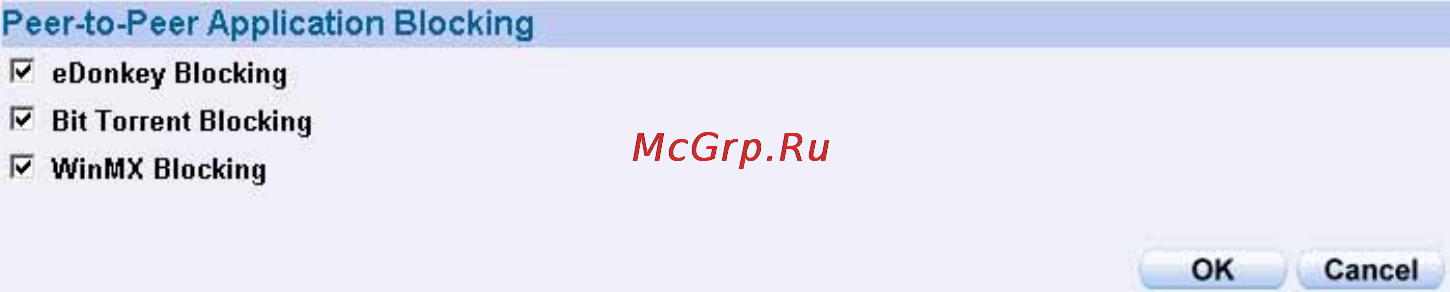

P2P Blocking Web UI

１３０
