STEP 2﹒Add a new Outgoing Policy and use in Content Blocking function:

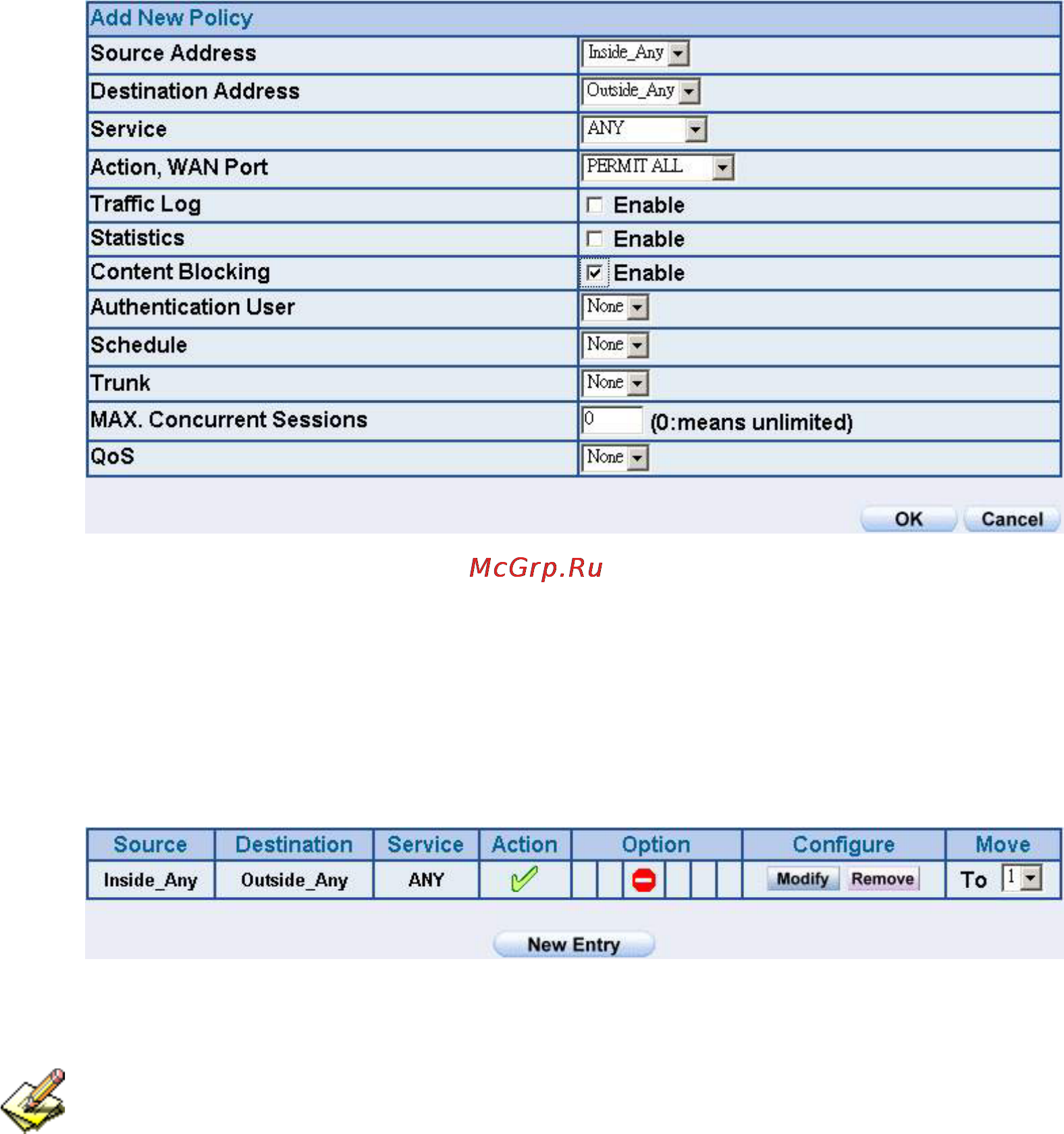

New Policy of Script Blocking Setting

STEP 3﹒Complete the policy of restricting the internal users to access to Script file of

Website in Outgoing Policy:

Complete Script Blocking Policy Setting

The users may not use the specific function (like JAVA, cookie…etc.) to browse the

website through this policy. It can forbid the user browsing stock exchange website…etc.

１２９
