Planet SG-1000 [202/262] Only allow the users who pass authentication to access to internet in particular time

Only allow the users who pass Authentication to access to Internet in

particular time

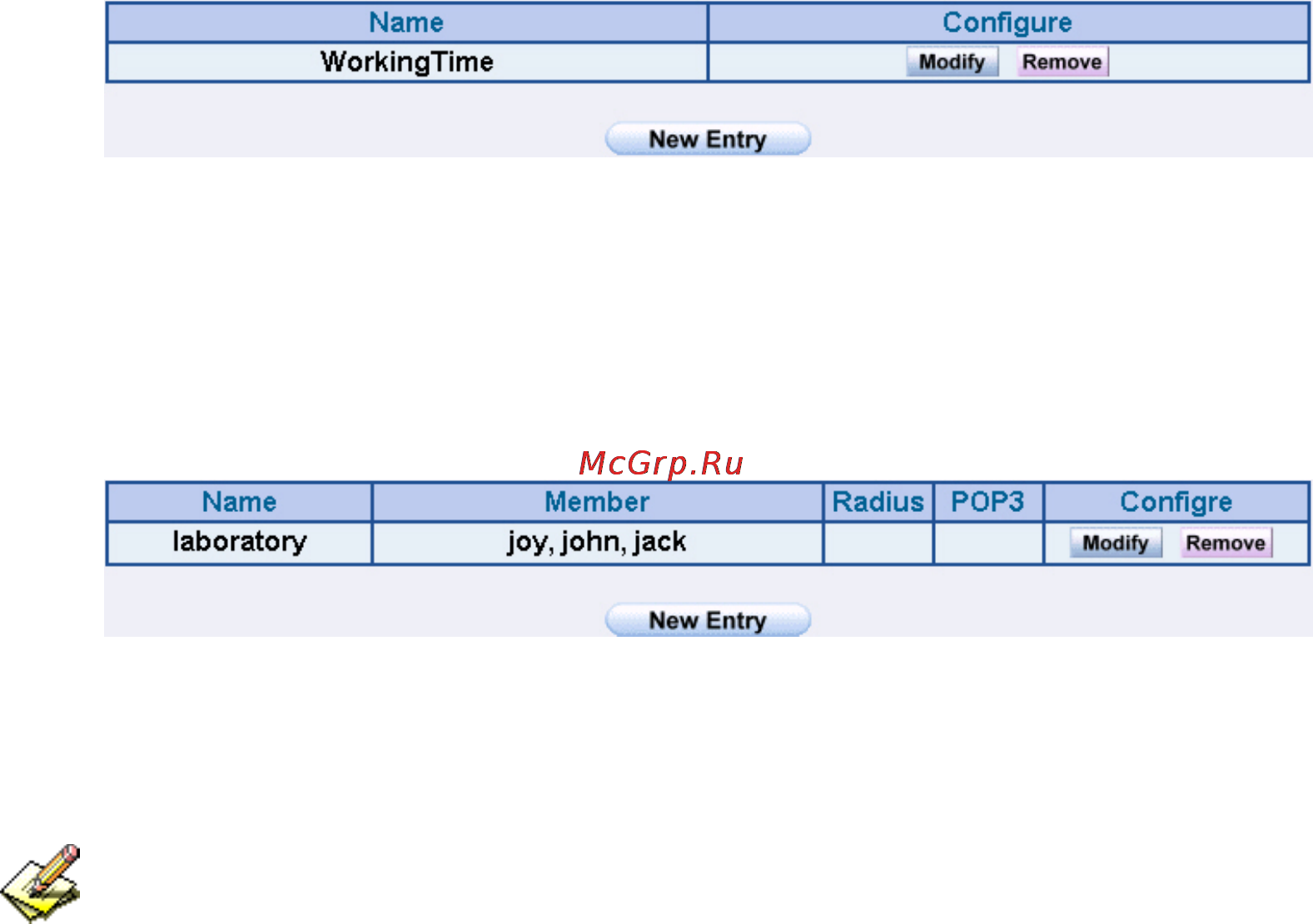

STEP 1﹒Enter the following in Schedule function:

Add New Schedule

STEP 2﹒Enter the following in Auth User and Auth User Group in Authentication

function:

Setting Auth User Group

The Administrator can use group function the Authentication and Service. It is more

convenient when setting policy.

２０１
