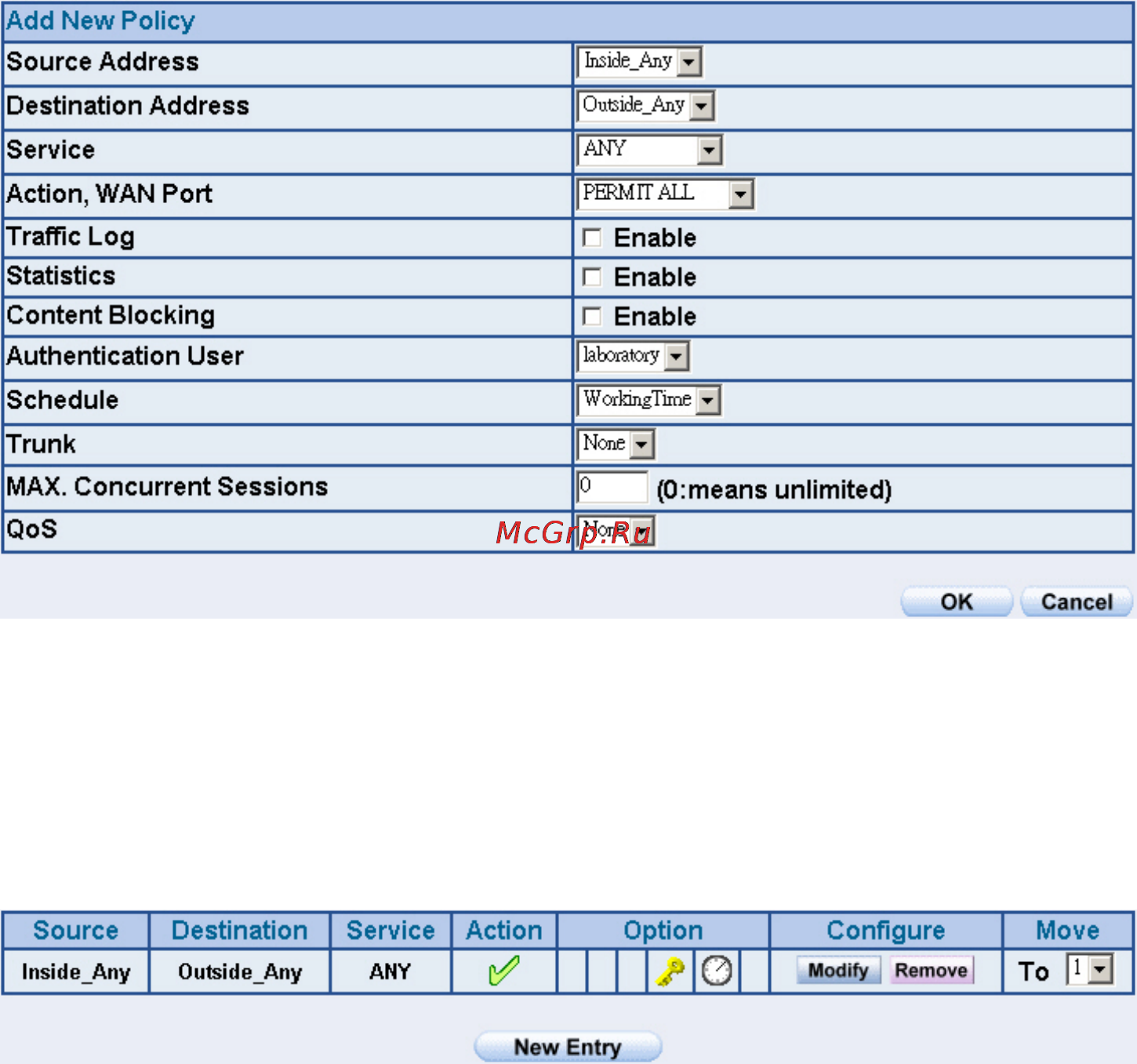

STEP 3﹒Enter the following setting in Outgoing Policy:

 Click New Entry

 Authentication User: Select laboratory

 Schedule: Select WorkingTime

 Click OK

Setting a Policy of Authentication and Schedule

STEP 4﹒Complete the policy rule of only allows the users who pass authentication to

access to Internet in particular time.

Complete Policy Setting
