19.3 ARP Table

STEP 1﹒Enter ARP Table in Status function; it will display a table about IP Address,

MAC Address, and the Interface information which is connecting to the SG-

1000:

 NetBIOS Name: The identified name of the network

 IP Address: The IP Address of the network

 MAC Address: The identified number of the network card

 Interface: The Interface of the computer

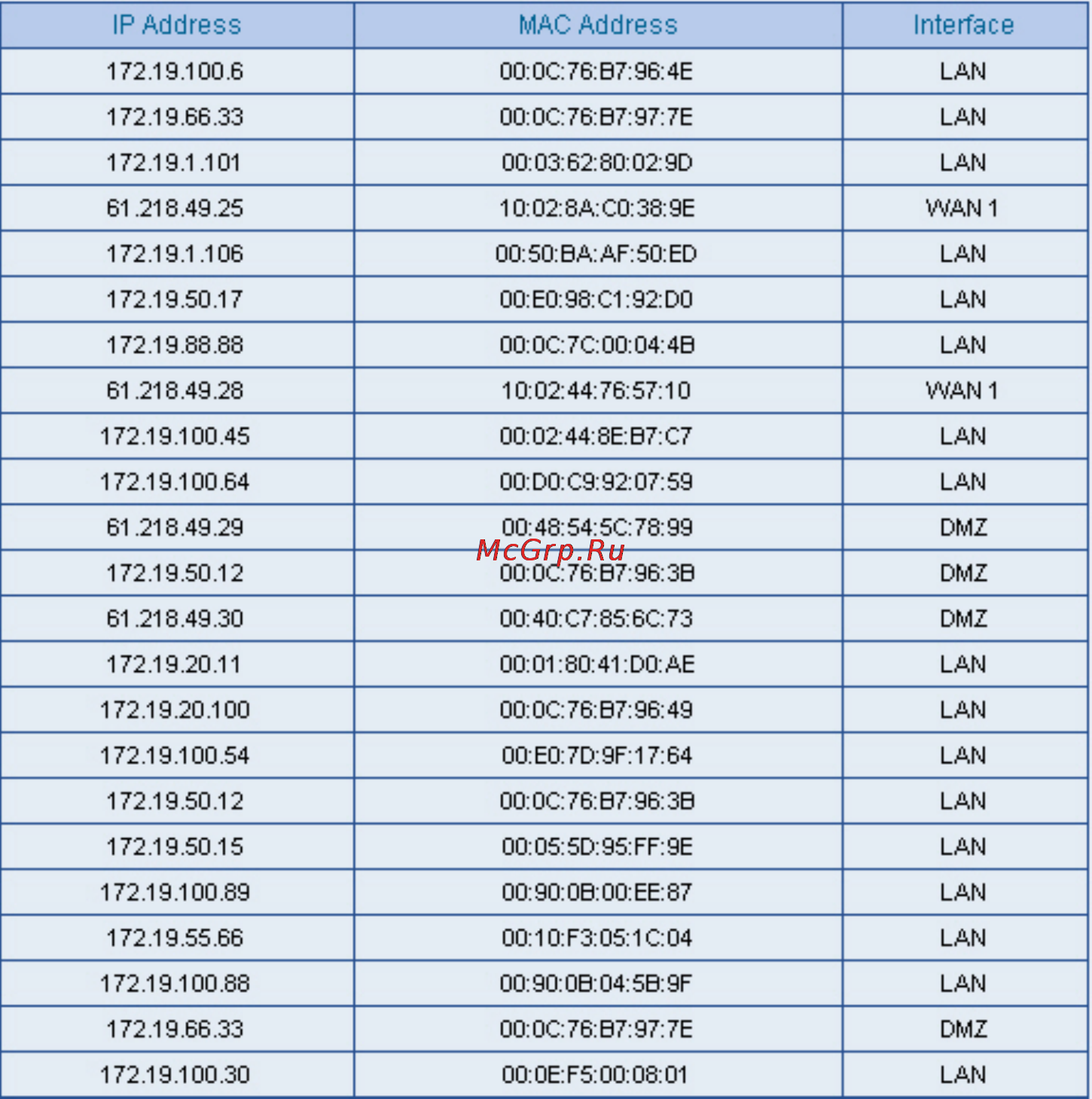

ARP Table Web UI
