Planet SG-1000 [143/262] Step 7 complete the setting of providing several services by mapped ip

１４２

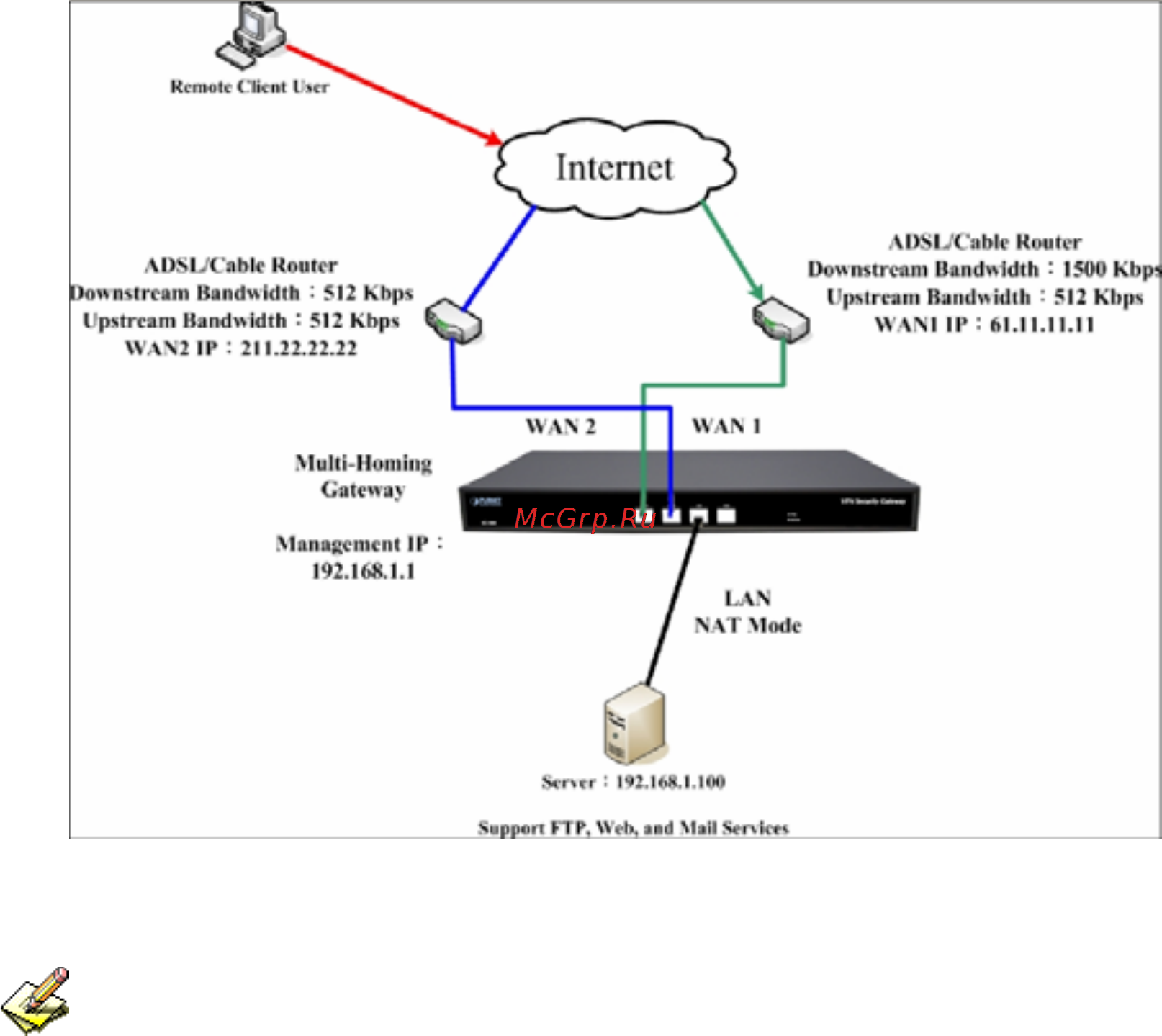

A Single Server that Provides veral Services by Mapped IP

STEP 7﹒Complete the setting of providing several services by mapped IP.

Strong suggests not to choose ANY when setting Mapped IP and choosing service.

Othe r. rwise the Mapped IP will be exposed to Internet easily and may be attacked by Hacke
