Planet SG-1000 [119/262] Setting the users to connect with external network only before passing the authentication of policy adopt the external pop3 server authentication

9.3 Setting the users to connect with external network only before

passing the authentication of policy. (Adopt the external POP3 Server

Authentication)

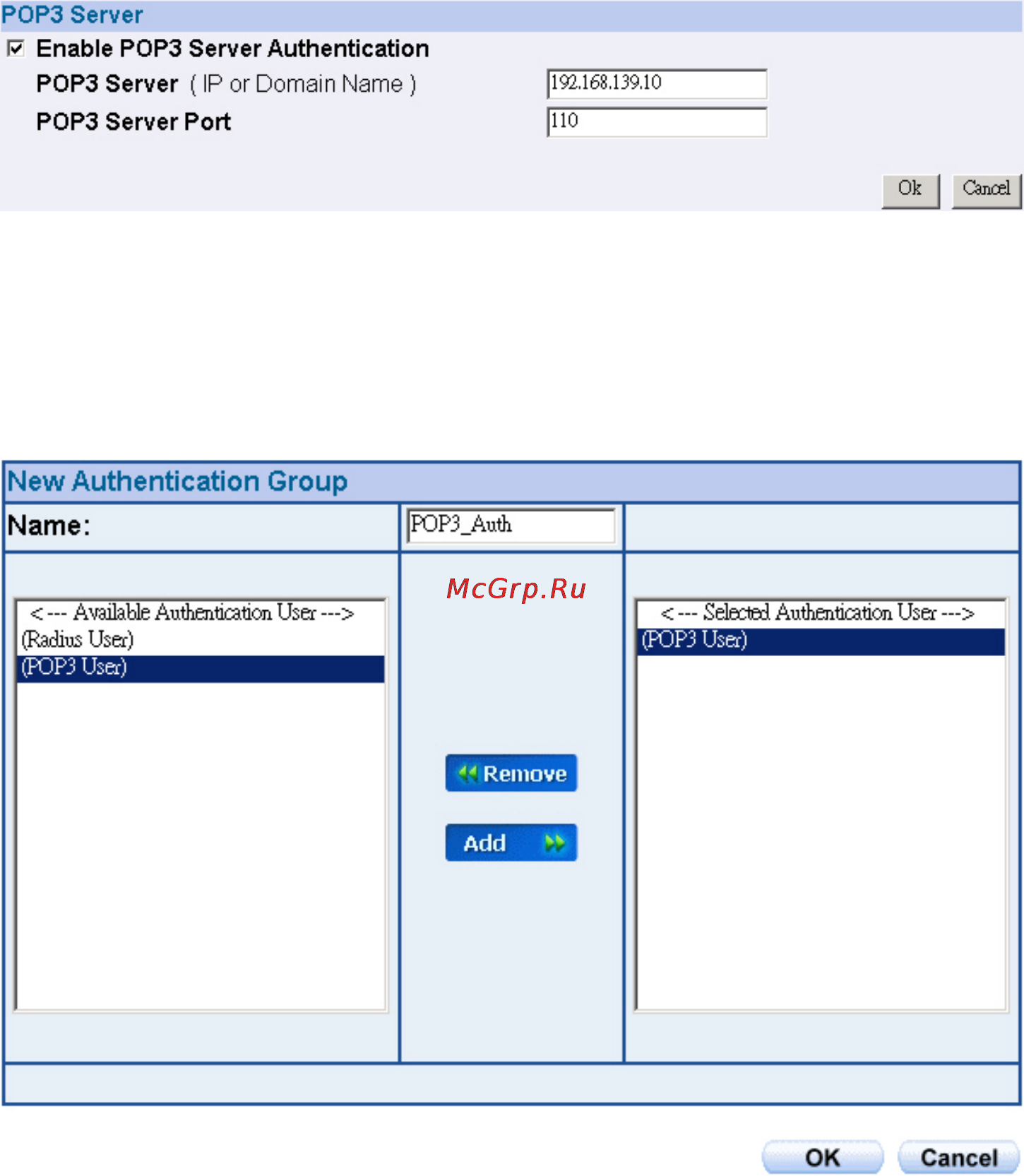

STEP 1﹒Enter the following setting in POP3 in Authentication

POP3 Server Setting Web UI

STEP 2﹒Add POP3 User in New Authentication Group.

Add New POP3 User Web UI

１１８
