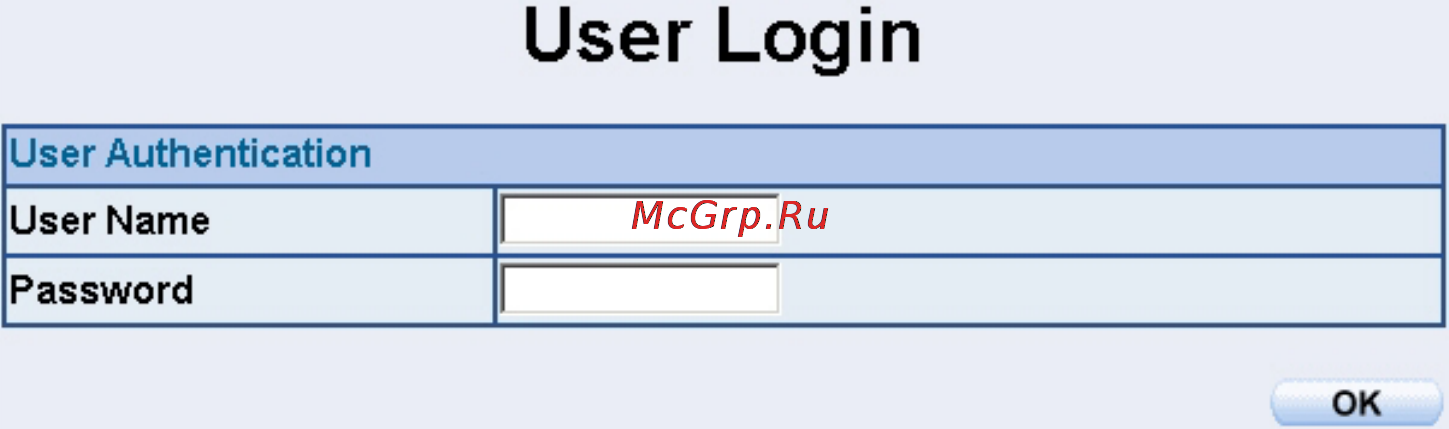

STEP 24﹒When the user is going to connect with Internet through browser, the

Authentication windows will appear in browser. After entering the correct

account and password can connect with Internet through SG-1000.

Access to Internet by Authentication Web UI

１１７
