Define the required fields of PPTP Client Function

 To display the VPN connection status via icon。

Chart --

Meaning Not be applied Disconnect Connecting

User Name:

 Displays the PPTP Client user’s name when connecting to PPTP Server.

Server IP or Domain Name:

 Display the PPTP Server IP addresses or Domain Name when connecting to PPTP

Server.

Encryption:

 Display PPTP Client and PPTP Server transmission, whether opens the encryption

authentication mechanism.

Uptime:

 Displays the connection time between PPTP Server and Client.

Configure:

 Click Modify to change the argument of PPTP Client; click Remove to remote the

setting.

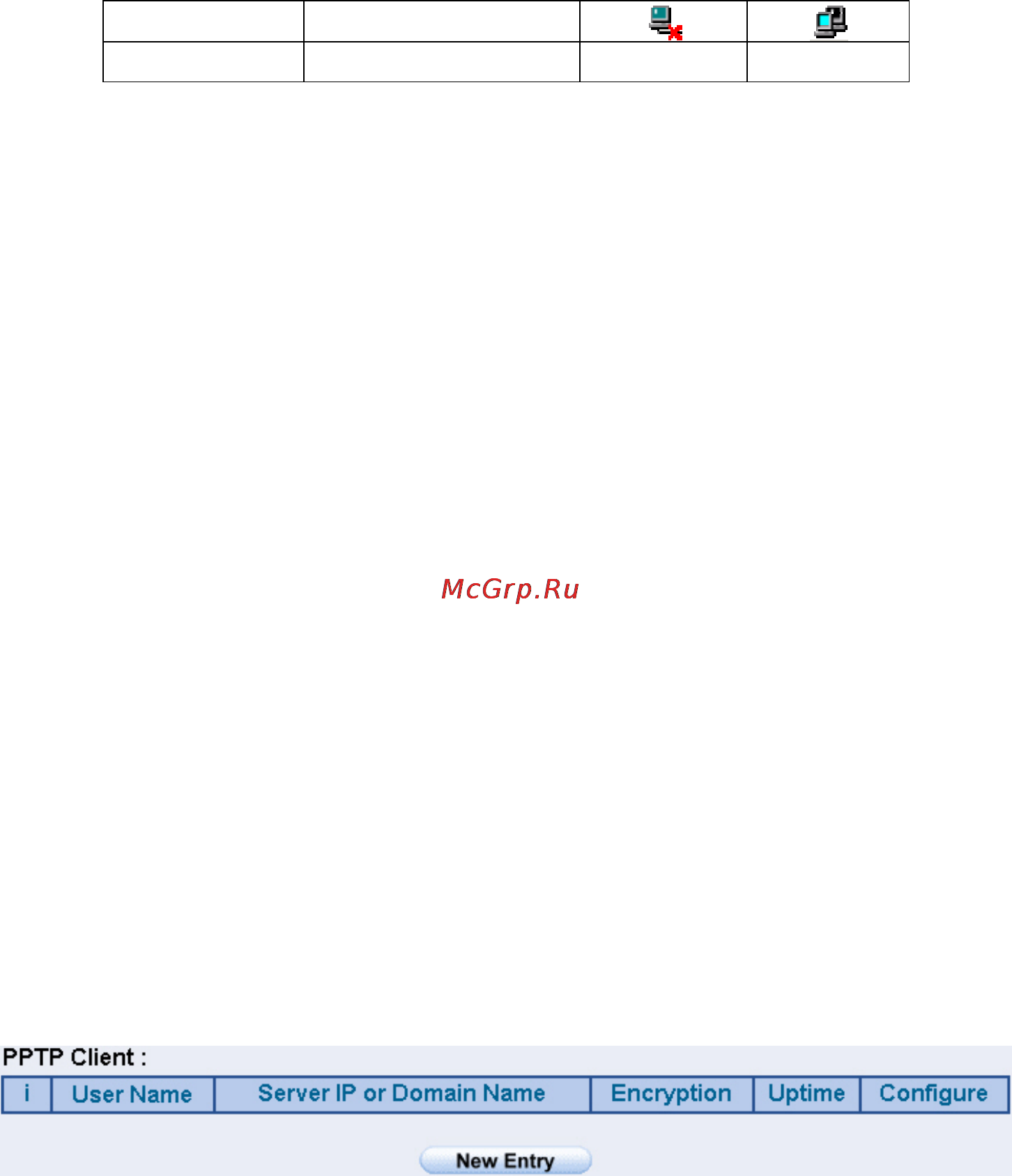

PPTP Client Web UI
