Planet SG-1000 [31/262] Adding multiple subnet

Adding Multiple Subnet

Add the following settings in Multiple Subnet of System function:

 Click on New Entry

 Alias IP of LAN Interface： Enter 162.172.50.1

 Netmask：Enter 255.255.255.0

 WAN1: Enter Interface IP 10.10.10.1, and choose Routing in

Forwarding Mode

 WAN2：Enter Interface IP 211.22.22.22, and choose NAT in

Forwarding Mode

 Click OK

 Complete Adding Multiple Subnet

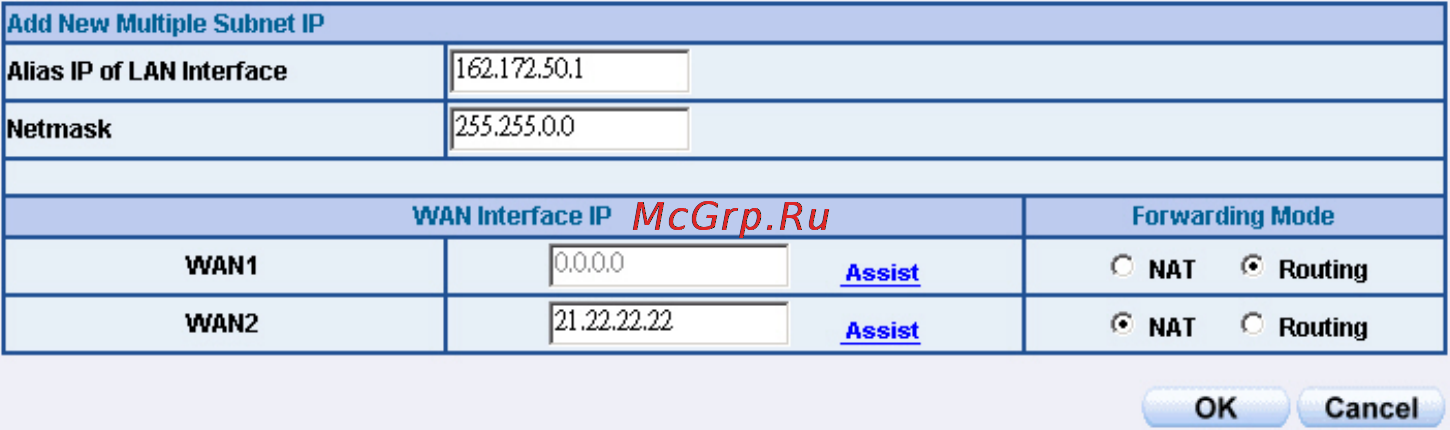

Add Multiple Subnet Web UI
