WAN1 and WAN2 Interface can use Assist to enter the data.

After setting, there will be two subnet in LAN: 192.168.1.0/24 (default LAN subnet) and

162.172.50.0/24. So if LAN IP is:

˙192.168.1.xx, it must use NAT Mode to access to the Internet. (In Policy it only can setup to

access to Internet by WAN2. If by WAN1 Routing mode, then it cannot access to Internet by its

virtual IP)

˙162.172.50.xx, it uses Routing mode through WAN1 (The Internet Server can see your IP

162.172.50.xx directly). And uses NAT mode through WAN2 (The Internet Server can see your

IP as WAN2 IP)

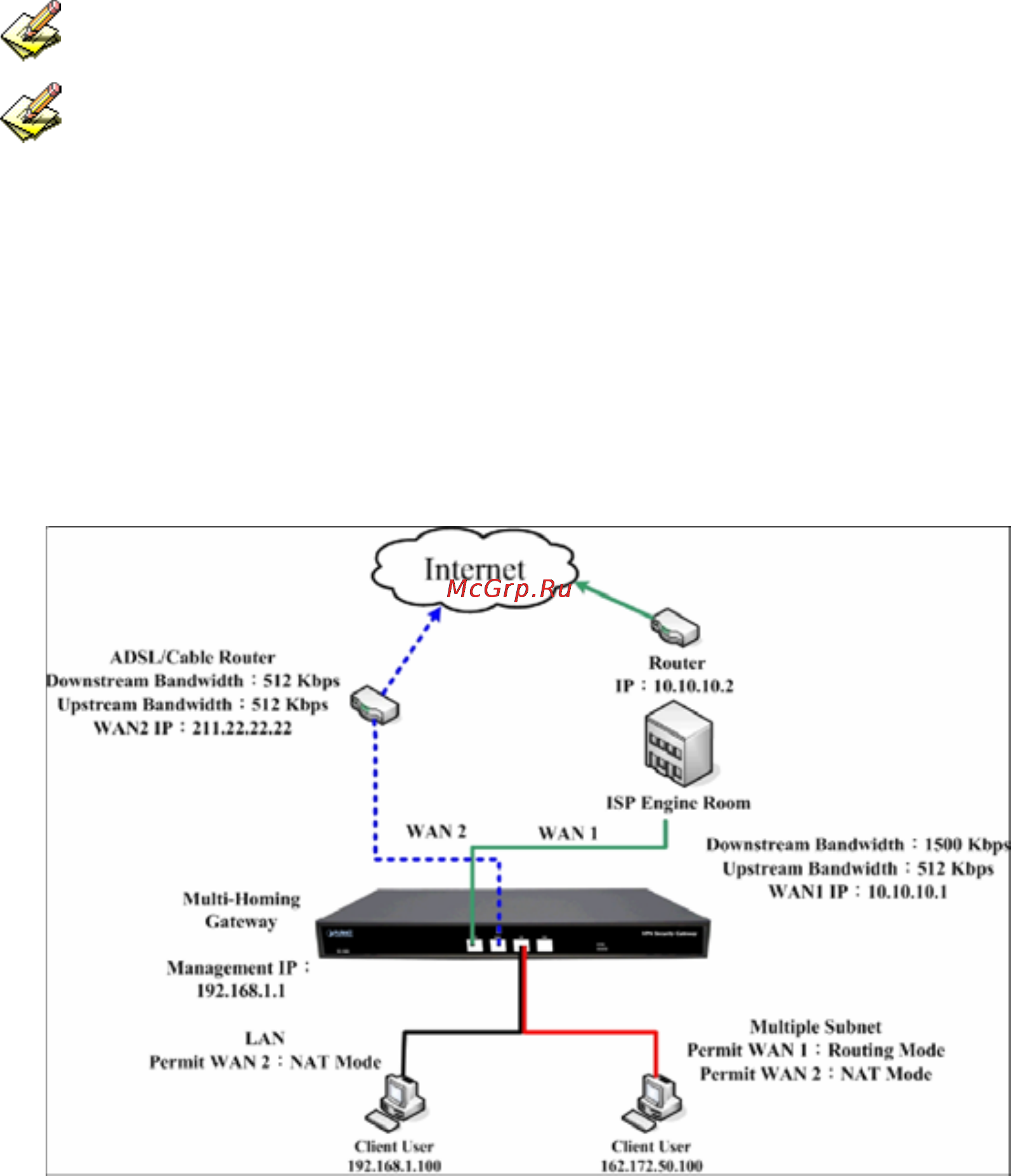

Multiple Subnet Network

３１
