Route Table

STEP 1﹒Enter the following settings in Route Table in System function:

 【Destination IP】: Enter 192.168.10.1

 【Netmask】: Enter 255.255.255.0。

 【Gateway】: Enter 192.168.1.252

 【Interface】: Select LAN

 Click OK

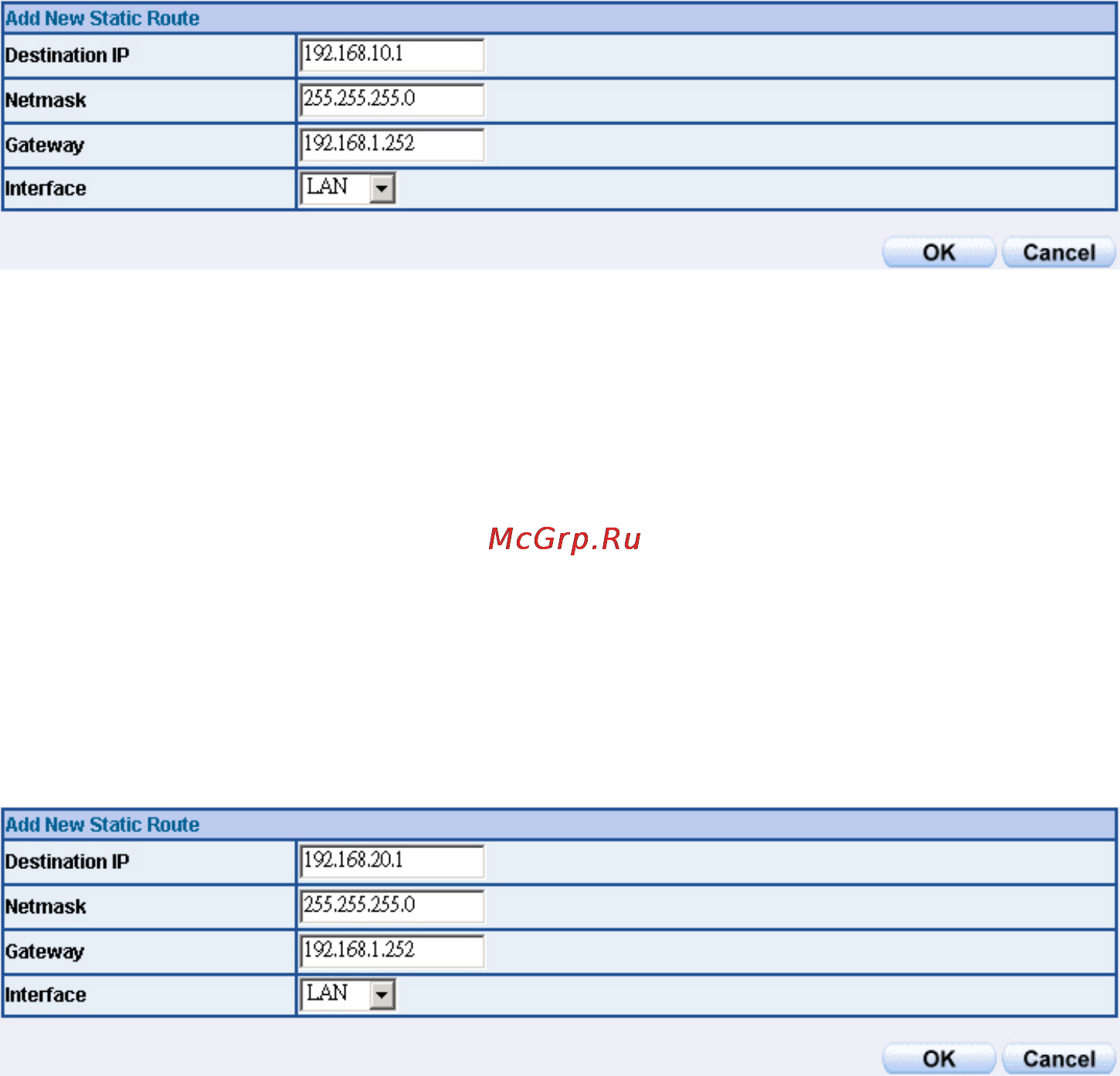

Add New Static Route1

STEP 2﹒Enter the following settings in Route Table in System function:

 【Destination IP】: Enter 192.168.20.1

 【Netmask】: Enter 255.255.255.0

 【Gateway】: Enter 192.168.1.252

 【Interface】: Select LAN

 Click OK

Add New Static Route2
