STEP 3﹒Enter the following setting in Route Table in System function:

 【Destination IP】: Enter 10.10.10.0

 【Netmask】: Enter 255.255.255.0

 【Gateway】: Enter 192.168.1.252

 【Interface】: Select LAN

 Click OK

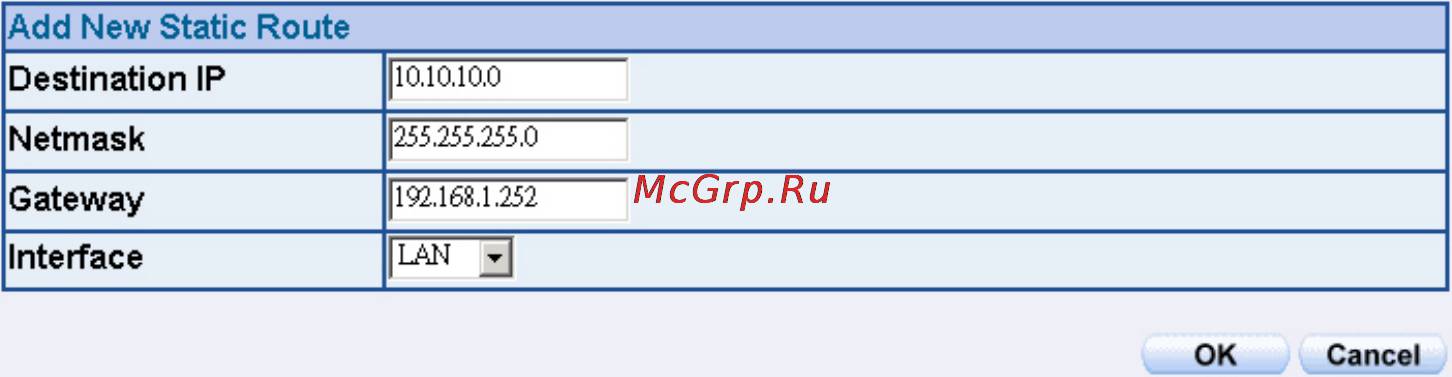

Add New Static Route3
