Planet SG-1000 [50/262] Setting wan interface address

4.2 Setting WAN Interface Address

STEP 1﹒Select WAN in Interface and click Modify in WAN1 Interface.

The setting of WAN2 Interface is almost the same as WAN1. The difference is that W

has a selection of Disable. The System Administrator can close WAN2 Interface by this

selection.

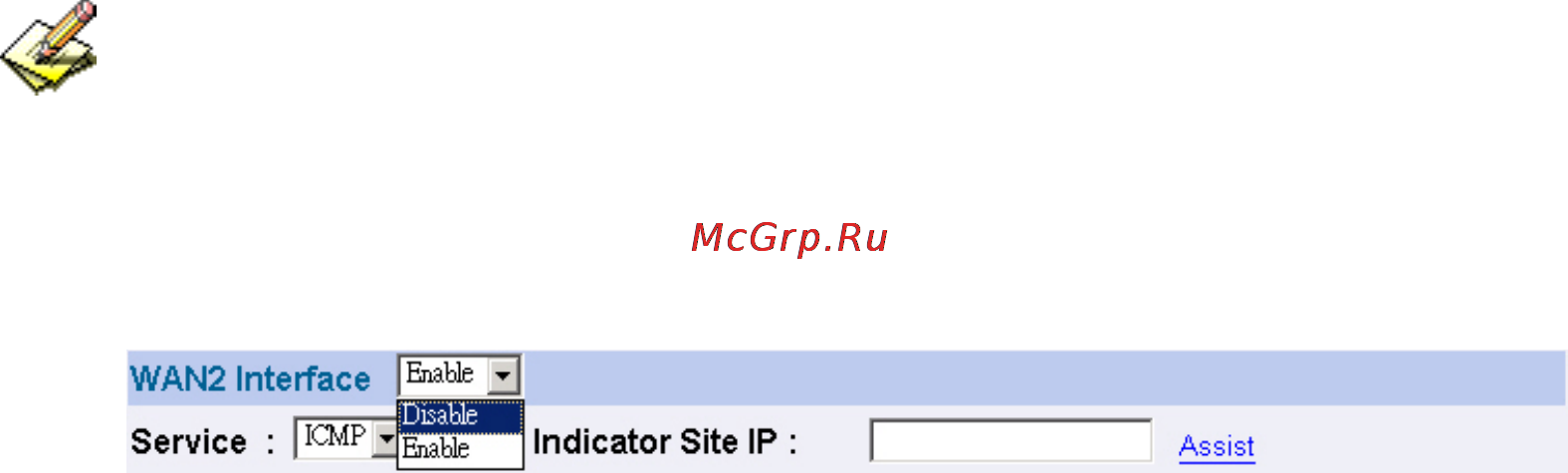

AN2

Disable WAN2 Interface

４９
