STEP 2﹒Setting the Connection Service (ICMP or DNS way)：

 ICMP：Enter an Alive Indicator Site IP (can select from Assist)

 DNS：Enter DNS Server IP Address and Domain Name (can select

from Assist)

 Setting time of seconds between sending alive packet.

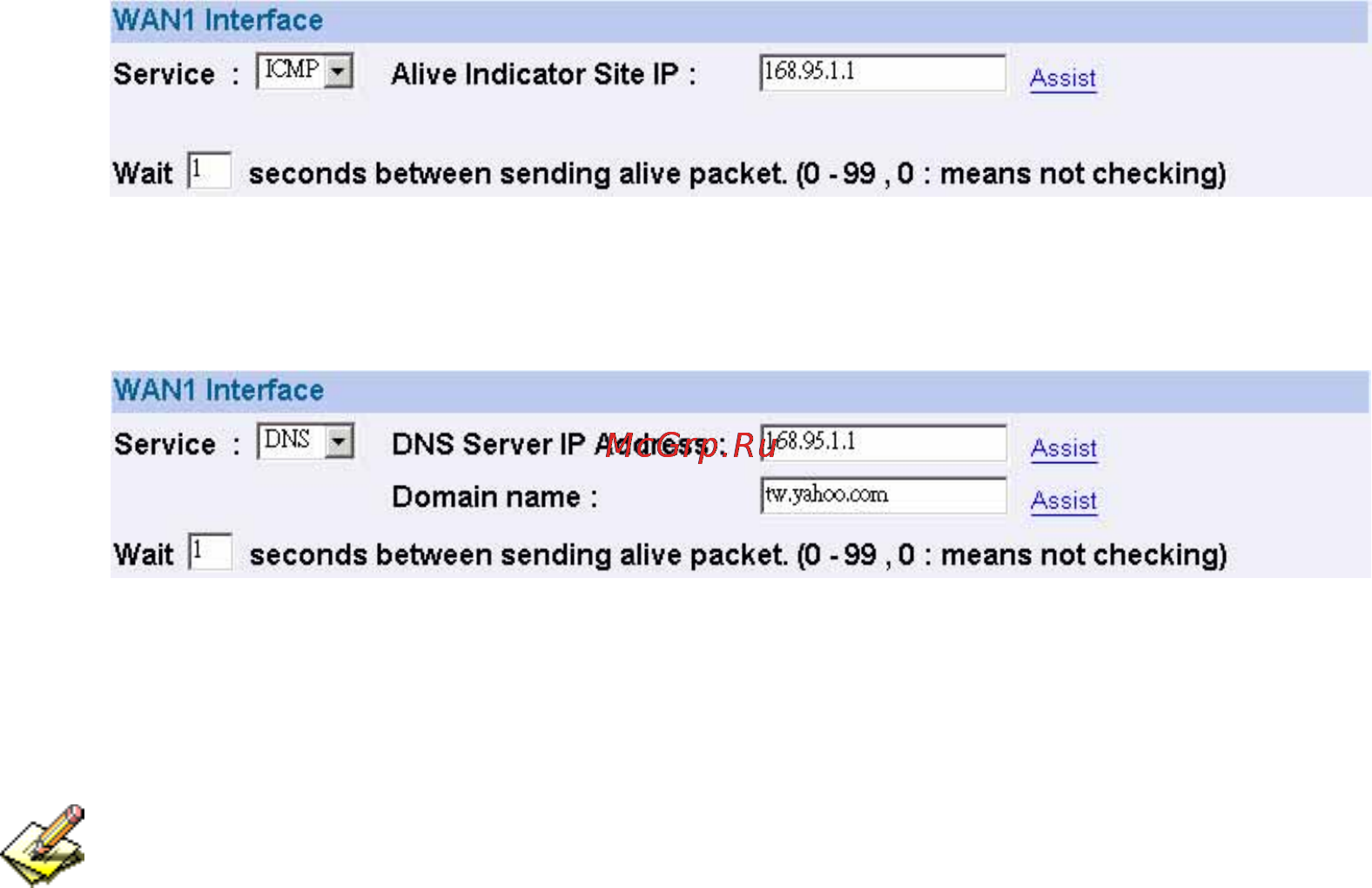

ICMP Connection

DNS Service

Connection test is used for SG-1000 to detect if the WAN can connect or not. So the

Alive Indicator Site IP, DNS Server IP Address, or Domain Name must be able to use

permanently. Or it will cause judgmental mistakes of the device.
