Planet SG-1000 [160/262] Define the required fields of pptp server function

Define the required fields of PPTP Server Function

PPTP Server:

 To select Enable or Disable

Client IP Range:

 Setting the IP addresses range for PPTP Client connection

 To display the VPN connection status via icon。

Chart --

Meaning Not be applied Disconnect Connecting

User Name:

 Display the PPTP Client user’s name when connecting to PPTP Server.

Client IP:

 Display the PPTP Client’s IP address when connecting to PPTP Server.

Uptime:

 Display the connection time between PPTP Server and Client.

Configure:

 Click Modify to modify the PPTP Server Settings or click Remove to remove the

setting.

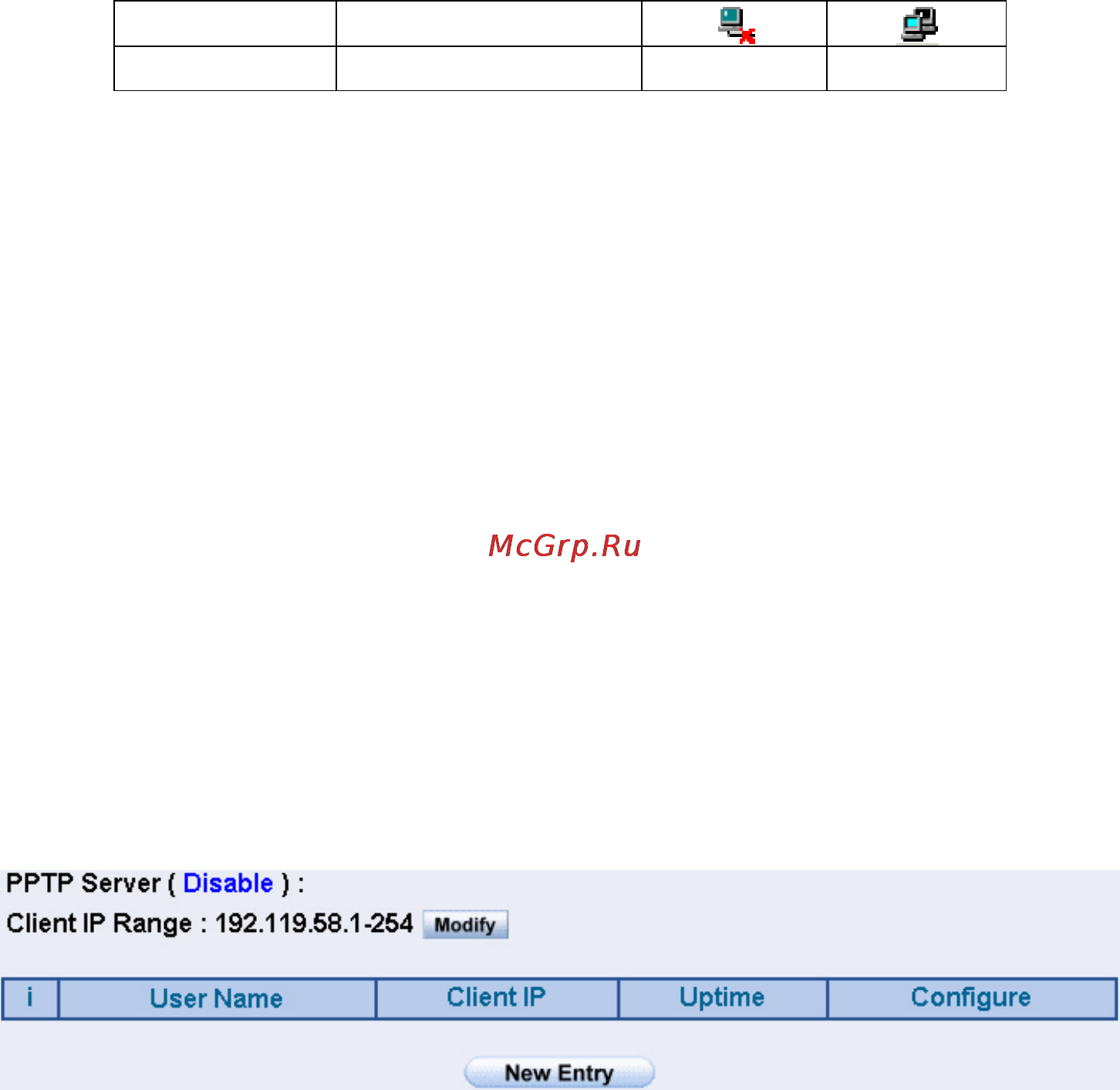

PPTP Server Web UI
