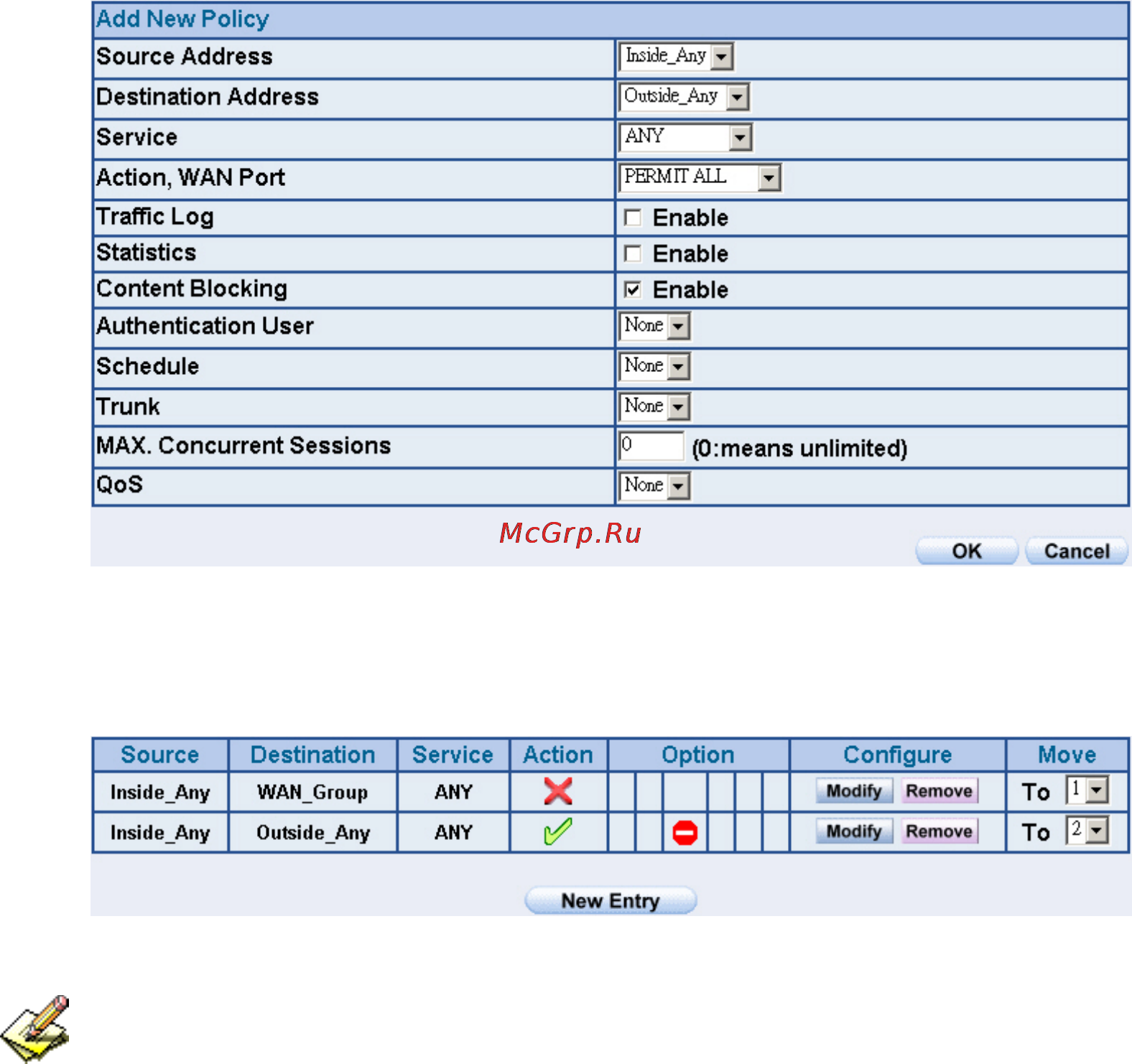

STEP 4﹒Enter the following setting in Outgoing Policy:

 Click New Entry

 Select Content Blocking

 Click OK

Setting Content Blocking Policy

STEP 5﹒Complete the setting of forbidding the users to access to specific network.

Complete Policy Setting

Deny in Policy can block the packets that correspond to the policy rule. The System

Administrator can put the policy rule in the front to prevent the user connecting with specific IP.

２００
