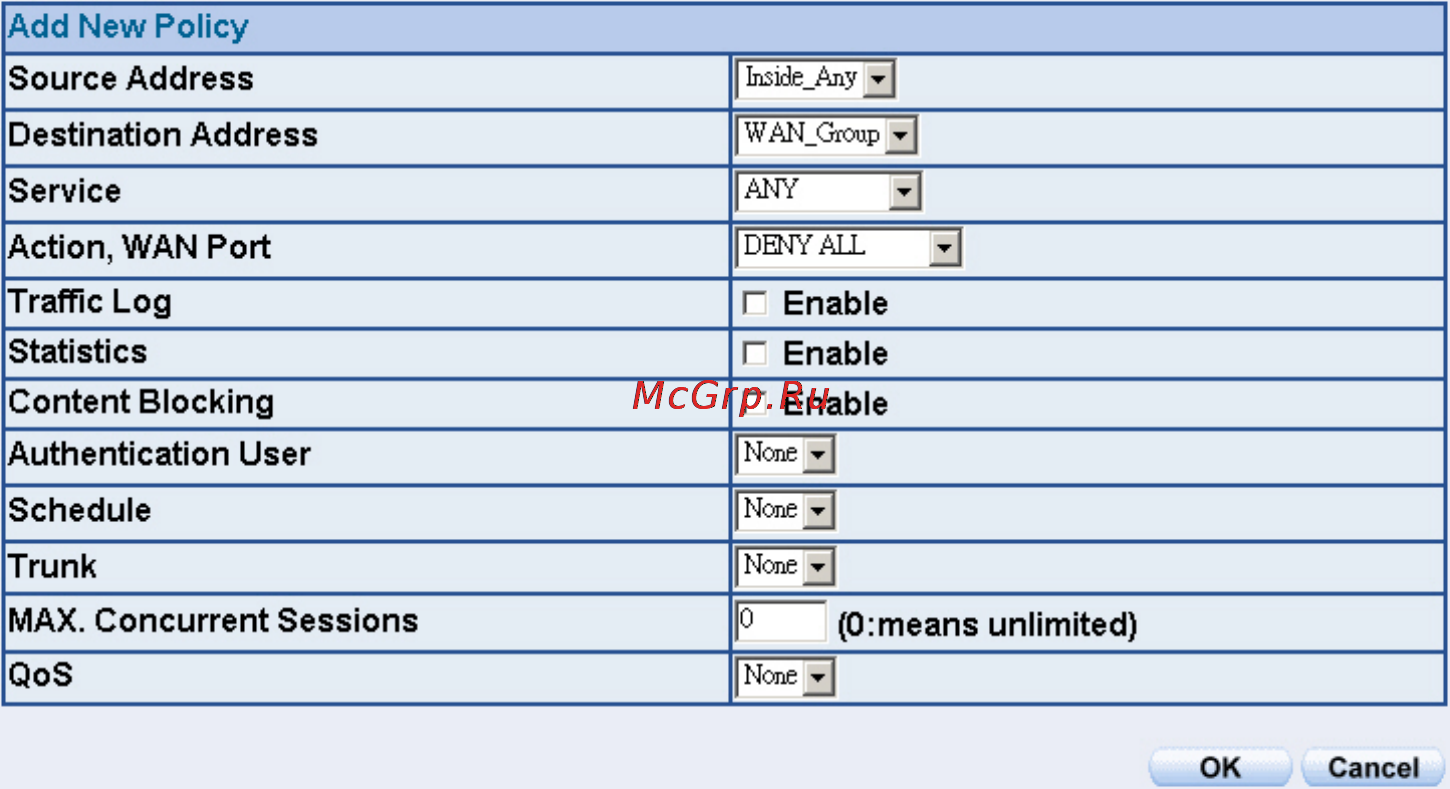

STEP 3﹒Enter the following setting in Outgoing Policy:

 Click New Entry

 Destination Address: Select WAN_Group that set by STEP 2.

(Blocking by IP)

 Action, WAN Port: Select Deny

 Click OK

Setting Blocking Policy
