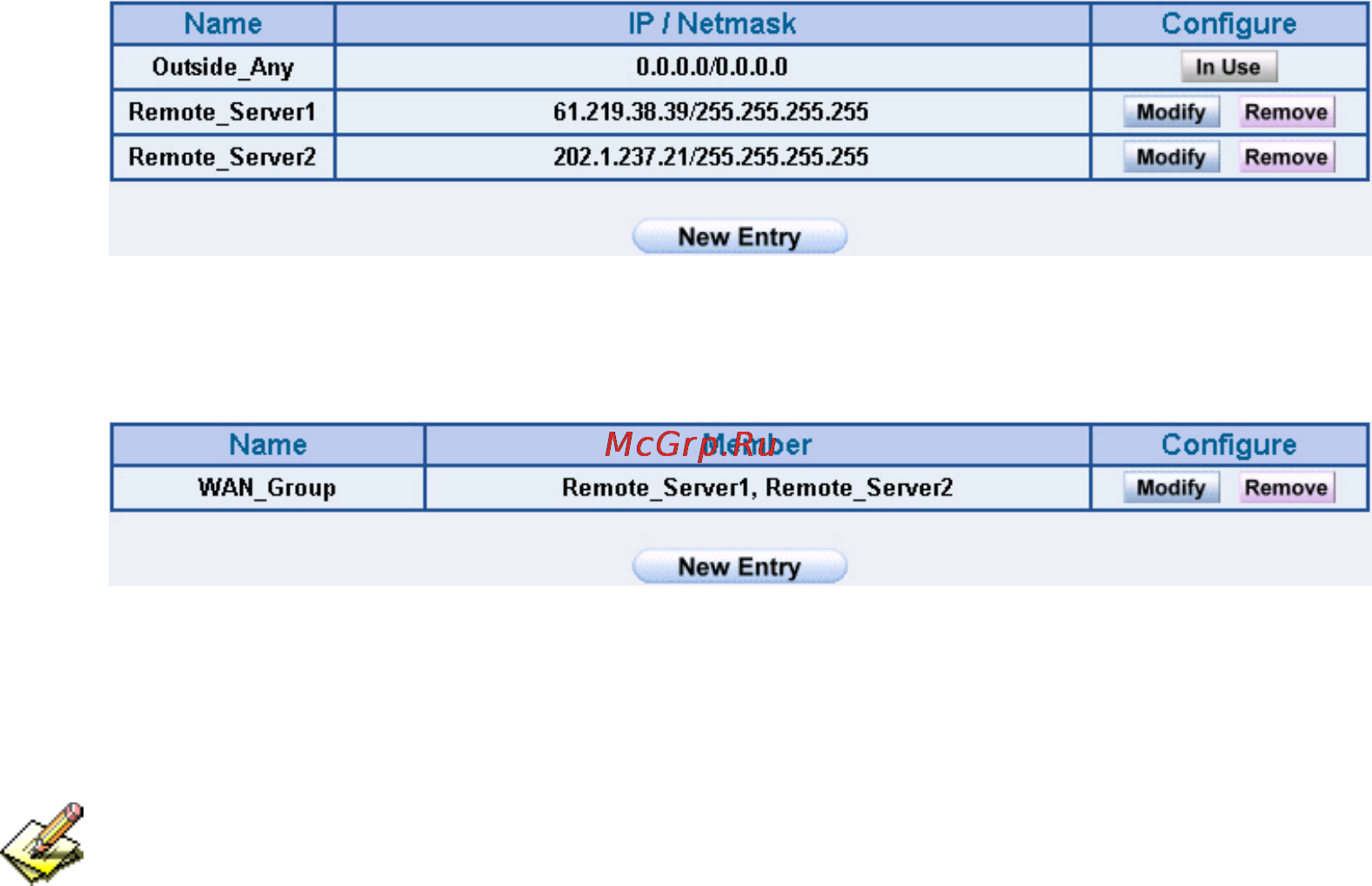

STEP 2﹒Enter as following in WAN and WAN Group of Address function:

Setting the WAN IP that going to block

WAN Address Group

The Administrator can group the custom address in Address. It is more convenient when

setting policy rule.

１９８
