STEP 2﹒Click on Download Logs and select Save in File Download Web UI. And

then choose the place to save in PC and click OK; the records will be saved

instantly.

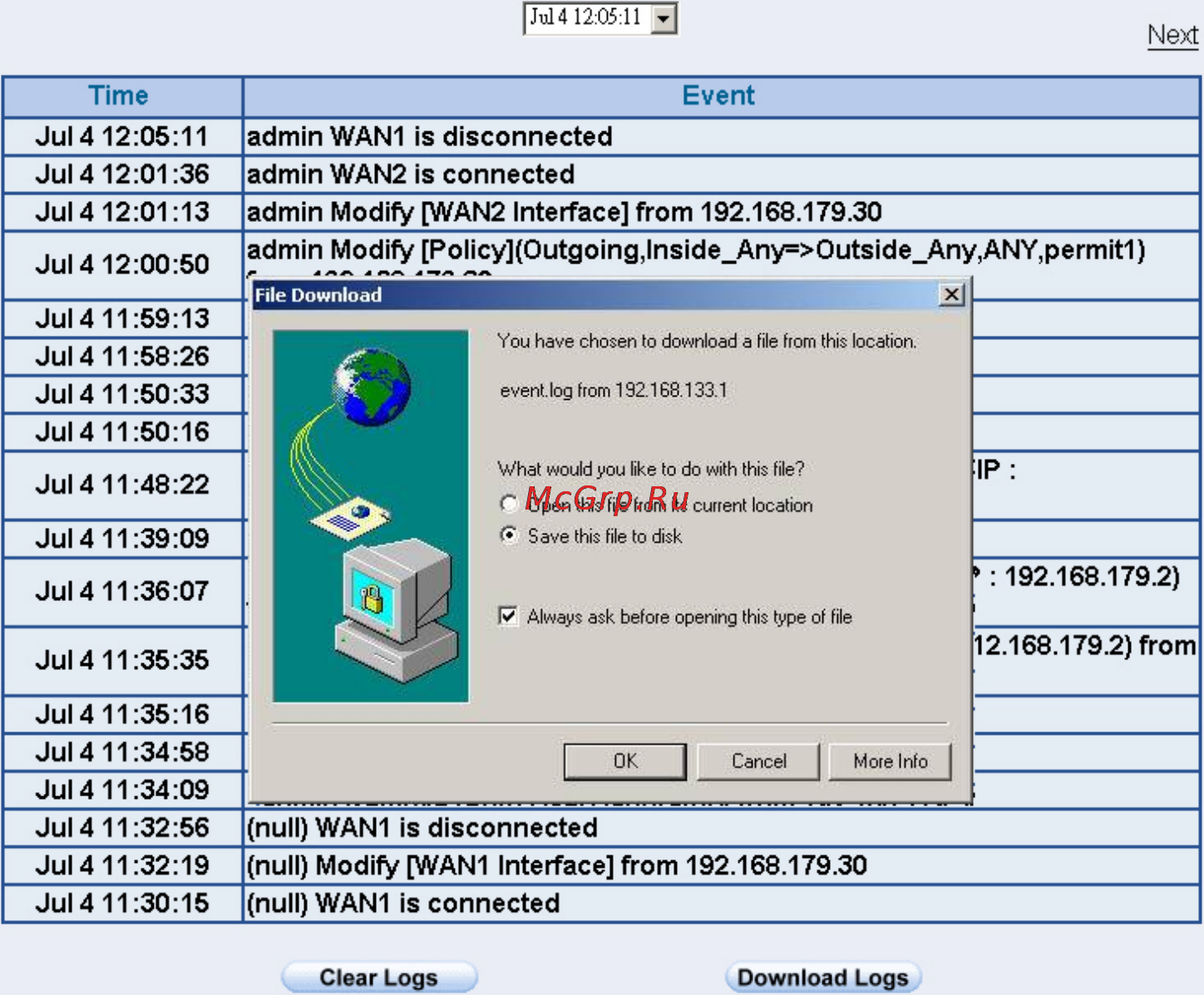

Download Event Log Records Web UI
