STEP 4. Enter the following setting in Setting of Web VPN / SSL VPN:

 Click Modify.

 Enable Web VPN function.

 VPN IP Range: Enter 192.168.222.0 / 255.255.255.0.

 Encryption Algorithm: Select 3DES.

 Protocol: Select TCP.

 Server Port: Enter default setting1194.

 Authentication User or Group: Select laboratory.

 Idle time: Enter 0.

 Click OK.

 It will add LAN subnet automatically to be allowed to access by client.

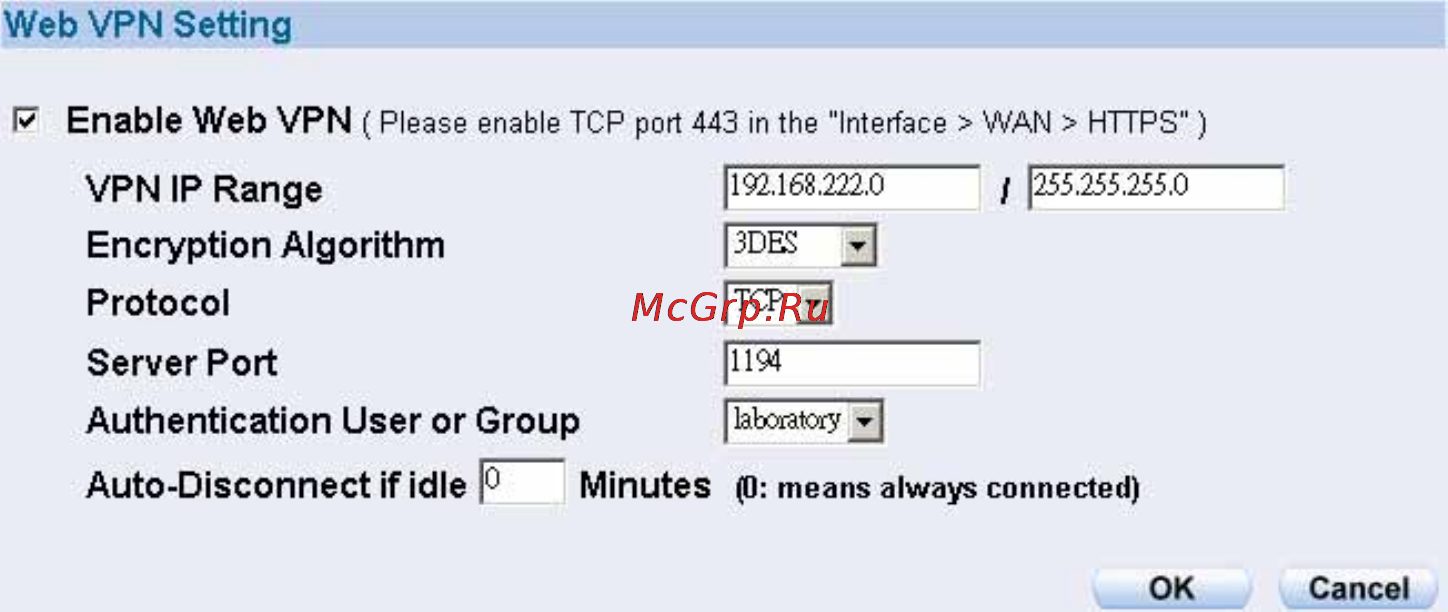

Enable Web VPN Setting

２１３
