After complete the Internal Alert Settings, if the device had detected the internal computer

sending large DDoS attack packets and then the alarm message will appear in the Internal

Alarm in Attack Alarm or send NetBIOS Alert notification to the infected PC Administrator’s

If the Administrator starts the E-Mail Alert Notification in Setting, the SG-1000 will send

e-mail to Administrator automatically.

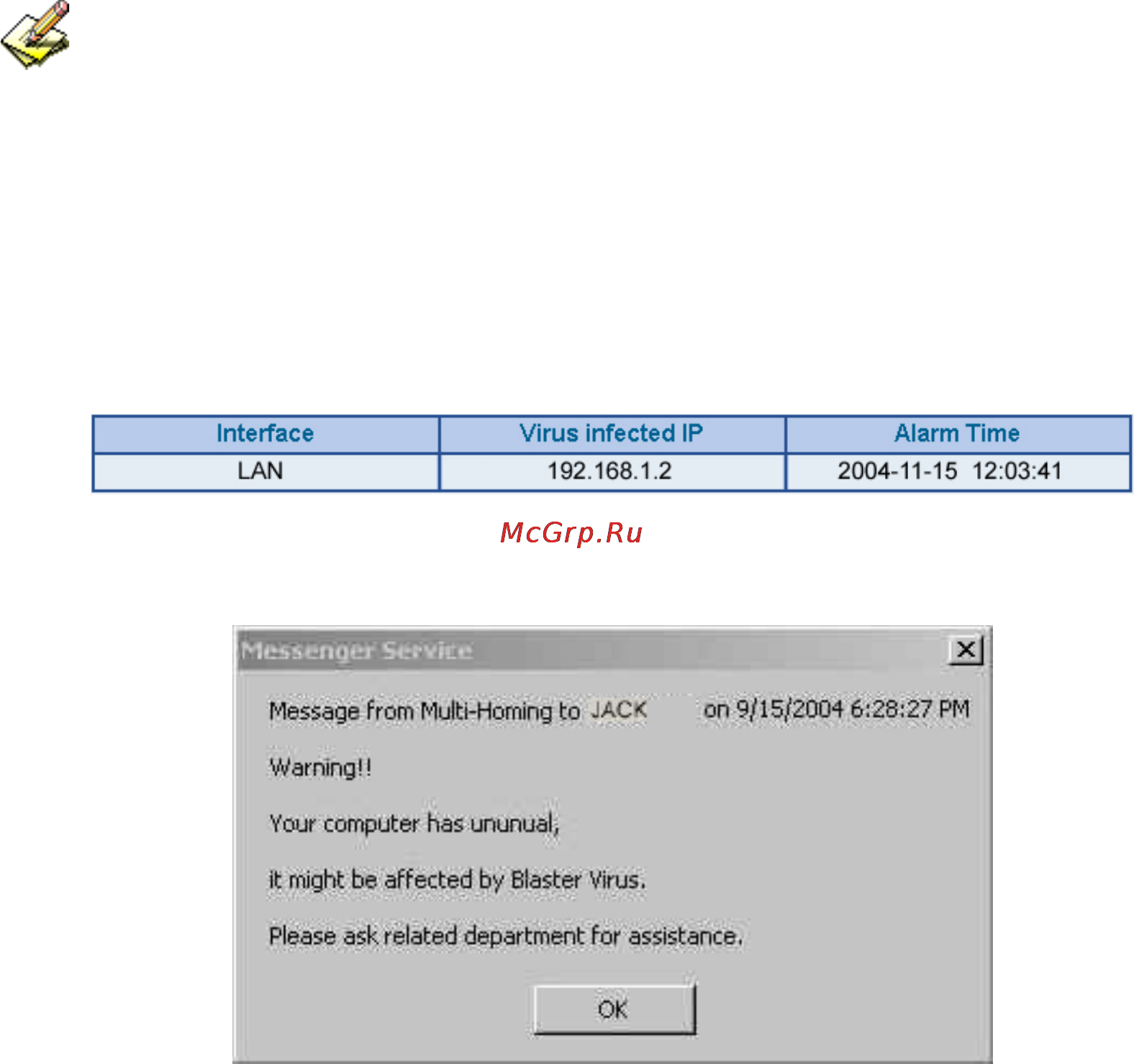

Internal Alert Record

NetBIOS Alert Notification to the Infected PC

２２８
